EC0589-000

Active

TE Connectivity Raychem Cable Protection

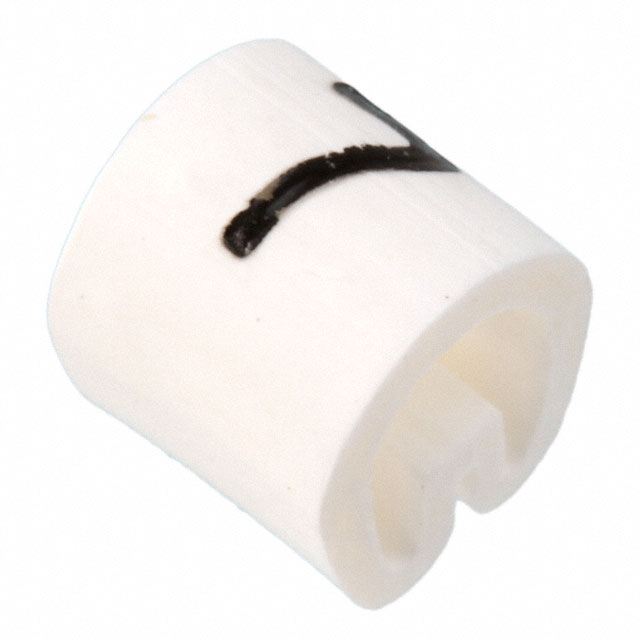

WIRE MARKER PUSH ON 4.5MM WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EC0589-000

Active

TE Connectivity Raychem Cable Protection

WIRE MARKER PUSH ON 4.5MM WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EC0589-000

Cable Diameter [Max] [diameter]	0.185 in
Cable Diameter [Max] [diameter]	4.7 mm
Cable Diameter [Min] [diameter]	2.9 mm
Cable Diameter [Min] [diameter]	0.114 in
Color	White
Legend	7
Material	Poly-Vinyl Chloride (PVC)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-45 °C
Size [x]	0.18 in
Size [x]	4.5 mm
Type	Wire Marker, Push On

EC05 Series

Part	Type	Legend	Operating Temperature [Min]	Operating Temperature [Max]	Color	Size [x]	Size [x]	Cable Diameter [diameter]	Cable Diameter [diameter]	Cable Diameter [diameter]	Material	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]	Legend
TE Connectivity Raychem Cable Protection EC0581-000	Wire Marker Push On	8	-45 °C	70 °C	Gray	0.18 in	4.5 mm	4 mm	2.5 mm	0.098 in 0.157 in	Poly-Vinyl Chloride (PVC)
TE Connectivity Raychem Cable Protection EC0501-000	Wire Marker Push On	V	-45 °C	70 °C	White	0.18 in	4.5 mm	4 mm	2.5 mm	0.098 in 0.157 in	Poly-Vinyl Chloride (PVC)
TE Connectivity Raychem Cable Protection EC0589-000	Wire Marker Push On	7	-45 °C	70 °C	White	0.18 in	4.5 mm				Poly-Vinyl Chloride (PVC)	2.9 mm	0.185 in	0.114 in	4.7 mm
TE Connectivity Raychem Cable Protection EC0582-000	Wire Marker Push On		-45 °C	70 °C	White	0.18 in	4.5 mm				Poly-Vinyl Chloride (PVC)	2.9 mm	0.185 in	0.114 in	4.7 mm	0
TE Connectivity Raychem Cable Protection EC0583-000	Wire Marker Push On	1	-45 °C	70 °C	White	0.18 in	4.5 mm				Poly-Vinyl Chloride (PVC)	2.9 mm	0.185 in	0.114 in	4.7 mm
TE Connectivity Raychem Cable Protection EC0575-000	Wire Marker Push On	3	-45 °C	70 °C		0.18 in	4.5 mm	4 mm	2.5 mm	0.098 in 0.157 in	Poly-Vinyl Chloride (PVC)
TE Connectivity Raychem Cable Protection EC0503-000	Wire Marker Push On	X	-45 °C	70 °C	White	0.18 in	4.5 mm	4 mm	2.5 mm	0.098 in 0.157 in	Poly-Vinyl Chloride (PVC)
TE Connectivity Raychem Cable Protection EC0597-000	Wire Marker Push On	F	-45 °C	70 °C	White	0.18 in	4.5 mm				Poly-Vinyl Chloride (PVC)	2.9 mm	0.185 in	0.114 in	4.7 mm
TE Connectivity Raychem Cable Protection EC0593-000	Wire Marker Push On	B	-45 °C	70 °C	White	0.18 in	4.5 mm				Poly-Vinyl Chloride (PVC)	2.9 mm	0.185 in	0.114 in	4.7 mm
TE Connectivity Raychem Cable Protection EC0591-000	Wire Marker Push On	9	-45 °C	70 °C	White	0.18 in	4.5 mm	4 mm	2.5 mm	0.098 in 0.157 in	Poly-Vinyl Chloride (PVC)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.10
		10	$ 0.03
		25	$ 0.03
		50	$ 0.02
		100	$ 0.02
		250	$ 0.02
		500	$ 0.02
		1000	$ 0.01
		2500	$ 0.01

Description

General part information

EC05 Series

Wire Marker, Push On 0.18" L (4.5mm) White Poly-Vinyl Chloride (PVC)
