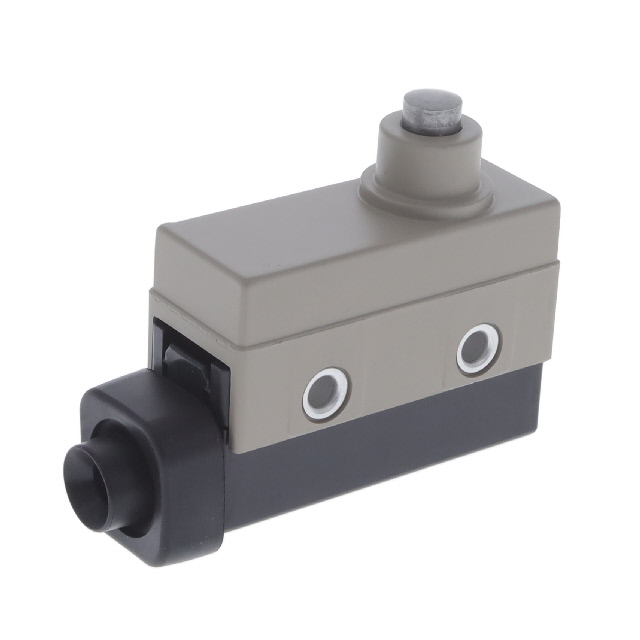

ZC-D55-01
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACT SPDT 0.1A 125V
Deep-Dive with AI
Search across all available documentation for this part.
ZC-D55-01
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACT SPDT 0.1A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZC-D55-01 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 100 mA |
| Differential Travel | 0.008 in |
| Differential Travel | 0.2 mm |
| Electrical Life | 500000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 1200 gf |
| Operating Position | 32.4 mm |
| Operating Position | 1.276 in |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -10 °C |
| Overtravel | 0.094 in |
| Overtravel | 2.4 mm |
| Pretravel | 1.5 mm |
| Pretravel | 0.06 in |
| Release Force | 500 gf |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 57.01 | |
| 10 | $ 49.88 | |||
| 25 | $ 45.61 | |||
| 50 | $ 42.76 | |||
| 100 | $ 40.62 | |||
| 250 | $ 39.19 | |||
Description
General part information
ZC-D55 Series
Switch SPDT Chassis Mount
