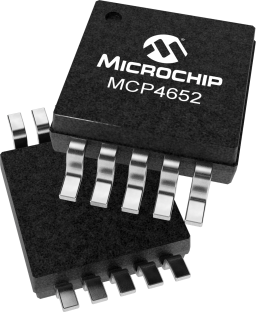

MCP4652T-502E/UN

Active

Microchip Technology

DUAL, 8BIT, V, I2C, RHEO 10 MSOP 3X3MM T/R ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUsing Digital Potentiometers to Design Low Pass Adjustable Filters Using a Digital Potentiometer to Optimize a Precision Single Supply Photo Detect +5

MCP4652T-502E/UN

Active

Microchip Technology

DUAL, 8BIT, V, I2C, RHEO 10 MSOP 3X3MM T/R ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsUsing Digital Potentiometers to Design Low Pass Adjustable Filters Using a Digital Potentiometer to Optimize a Precision Single Supply Photo Detect +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MCP4652T-502E/UN

Configuration	Rheostat
Features	Selectable Address, Mute
Interface	I2C
Memory Type	Volatile
Mounting Type	Surface Mount
Number of Circuits	2
Number of Taps	257
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-MSOP, 10-TFSOP
Package / Case [x]	3 mm
Package / Case [x]	0.118 in
Resistance - Wiper (Ohms) (Typ)	75 Ohms
Resistance (Ohms)	5 kOhms
Supplier Device Package	10-MSOP
Taper	Linear
Temperature Coefficient (Typ)	150 ppm/°C
Tolerance	20 %
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	1.8 V

mcp4652 Series

8-Bit Dual Digital POT with I2C™

Part	Supplier Device Package	Memory Type	Features	Tolerance	Resistance (Ohms)	Operating Temperature [Max]	Operating Temperature [Min]	Taper	Voltage - Supply [Min]	Voltage - Supply [Max]	Temperature Coefficient (Typ)	Interface	Package / Case	Mounting Type	Number of Taps	Resistance - Wiper (Ohms) (Typ)	Configuration	Number of Circuits	Package / Case [x]	Package / Case [x]	Resistance (Ohms)
Microchip Technology MCP4652T-503E/MF	10-DFN (3x3)	Volatile	Mute Selectable Address	20 %	50 kOhms	125 °C	-40 °C	Linear	1.8 V	5.5 V	150 ppm/°C	I2C	10-VFDFN Exposed Pad	Surface Mount	257	75 Ohms	Rheostat	2
Microchip Technology MCP4652T-503E/UN	10-MSOP	Volatile	Mute Selectable Address	20 %	50 kOhms	125 °C	-40 °C	Linear	1.8 V	5.5 V	150 ppm/°C	I2C	10-MSOP 10-TFSOP	Surface Mount	257	75 Ohms	Rheostat	2	3 mm	0.118 in
Microchip Technology MCP4652T-103E/UN	10-MSOP	Volatile	Mute Selectable Address	20 %		125 °C	-40 °C	Linear	1.8 V	5.5 V	150 ppm/°C	I2C	10-MSOP 10-TFSOP	Surface Mount	257	75 Ohms	Rheostat	2	3 mm	0.118 in	10k
Microchip Technology MCP4652-103E/UN	10-MSOP	Volatile	Mute Selectable Address	20 %		125 °C	-40 °C	Linear	1.8 V	5.5 V	150 ppm/°C	I2C	10-MSOP 10-TFSOP	Surface Mount	257	75 Ohms	Rheostat	2	3 mm	0.118 in	10k
Microchip Technology MCP4652-104E/UN	10-MSOP	Volatile	Mute Selectable Address	20 %	100 kOhms	125 °C	-40 °C	Linear	1.8 V	5.5 V	150 ppm/°C	I2C	10-MSOP 10-TFSOP	Surface Mount	257	75 Ohms	Rheostat	2	3 mm	0.118 in
Microchip Technology MCP4652T-502E/UN	10-MSOP	Volatile	Mute Selectable Address	20 %	5 kOhms	125 °C	-40 °C	Linear	1.8 V	5.5 V	150 ppm/°C	I2C	10-MSOP 10-TFSOP	Surface Mount	257	75 Ohms	Rheostat	2	3 mm	0.118 in
Microchip Technology MCP4652-503E/UN	10-MSOP	Volatile	Mute Selectable Address	20 %	50 kOhms	125 °C	-40 °C	Linear	1.8 V	5.5 V	150 ppm/°C	I2C	10-MSOP 10-TFSOP	Surface Mount	257	75 Ohms	Rheostat	2	3 mm	0.118 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.24
		25	$ 1.03
		100	$ 0.95
	Digi-Reel®	1	$ 1.24
		25	$ 1.03
		100	$ 0.95
	Tape & Reel (TR)	2500	$ 0.95
Microchip Direct	T/R	1	$ 1.24
		25	$ 1.03
		100	$ 0.95
		1000	$ 0.89
		5000	$ 0.88
Newark	Each (Supplied on Full Reel)	100	$ 0.98

Description

General part information

mcp4652 Series

The MCP465X devices are dual channel, volatile, 8-bit (257 wiper steps) digital potentiometers with an I2C compatible interface. The MCP46XX family is available with end-to-end resistor values of 5KΩ, 10KΩ, 50kΩ and 100KΩ. These devices offer a variety of configurations simplifying design while minimizing cost, package size and pin count.
