896-098-500-207
ActiveEDAC Inc.

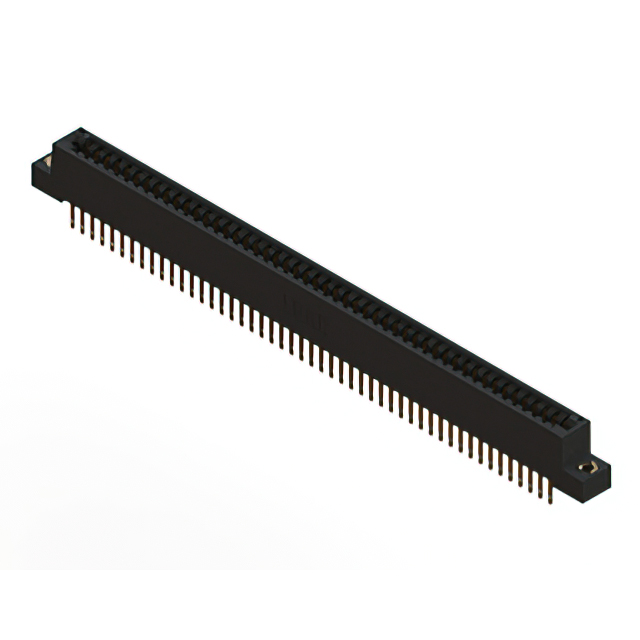

CONN EDGE DUAL FMALE 98POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
896-098-500-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 98POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 896-098-500-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 98 |
| Number of Positions/Bay/Row [custom] | 49 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
896-098 Series
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Color | Number of Positions | Read Out | Contact Finish | Mounting Type | Card Type | Gender | Number of Rows | Pitch [x] | Pitch [x] | Material - Insulation | Flange Feature | Contact Type | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Termination Rows | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Copper Alloy | Black | 98 | Dual | Gold | Through Hole | Non Specified - Dual Edge | Female | 2 | 0.125 in | 3.18 mm | Polyphenylene Sulfide (PPS) | 4-40 Threaded Insert Top Mount Opening | Cantilever | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 2 | 49 | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Copper Alloy | Black | 98 | Dual | Gold | Through Hole | Non Specified - Dual Edge | Female | 2 | 0.125 in | 3.18 mm | Polyphenylene Sulfide (PPS) | Top Mount Opening Unthreaded | Cantilever | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 2 | 49 | 0.156 in | 3.96 mm |
EDAC Inc. | 10 Áin | 0.25 Ám | Copper Alloy | Black | 98 | Dual | Gold | Through Hole | Non Specified - Dual Edge | Female | 2 | 0.125 in | 3.18 mm | Polyphenylene Sulfide (PPS) | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 2 | 49 | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Copper Alloy | Black | 98 | Dual | Gold | Through Hole | Non Specified - Dual Edge | Female | 2 | 0.125 in | 3.18 mm | Polyphenylene Sulfide (PPS) | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 2 | 49 | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Copper Alloy | Black | 98 | Dual | Gold | Through Hole | Non Specified - Dual Edge | Female | 2 | 0.125 in | 3.18 mm | Polyphenylene Sulfide (PPS) | Flush Mount M3 Threaded Insert Top Opening | Cantilever | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 2 | 49 | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Copper Alloy | Black | 98 | Dual | Gold | Through Hole | Non Specified - Dual Edge | Female | 2 | 0.125 in | 3.18 mm | Polyphenylene Sulfide (PPS) | 4-40 Threaded Insert Top Mount Opening | Cantilever | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 2 | 49 | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Copper Alloy | Black | 98 | Dual | Gold | Through Hole | Non Specified - Dual Edge | Female | 2 | 0.125 in | 3.18 mm | Polyphenylene Sulfide (PPS) | Floating Bobbin Top Mount Opening | Cantilever | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 2 | 49 | 0.116 in | 2.95 mm |
EDAC Inc. | 10 Áin | 0.25 Ám | Copper Alloy | Black | 98 | Dual | Gold | Through Hole | Non Specified - Dual Edge | Female | 2 | 0.125 in | 3.18 mm | Polyphenylene Sulfide (PPS) | Flush Mount Top Opening Unthreaded | Cantilever | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 2 | 49 | 0.156 in | 3.96 mm |
EDAC Inc. | 10 Áin | 0.25 Ám | Copper Alloy | Black | 98 | Dual | Gold | Through Hole | Non Specified - Dual Edge | Female | 2 | 0.125 in | 3.18 mm | Polyphenylene Sulfide (PPS) | Flush Mount Top Opening Unthreaded | Cantilever | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 2 | 49 | 0.128 " | 3.25 mm |
EDAC Inc. | 10 Áin | 0.25 Ám | Copper Alloy | Black | 98 | Dual | Gold | Through Hole | Non Specified - Dual Edge | Female | 2 | 0.125 in | 3.18 mm | Polyphenylene Sulfide (PPS) | Floating Bobbin Top Mount Opening | Cantilever | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | 2 | 49 | 0.116 in | 2.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 132.38 | |
Description
General part information
896-098 Series
98 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
