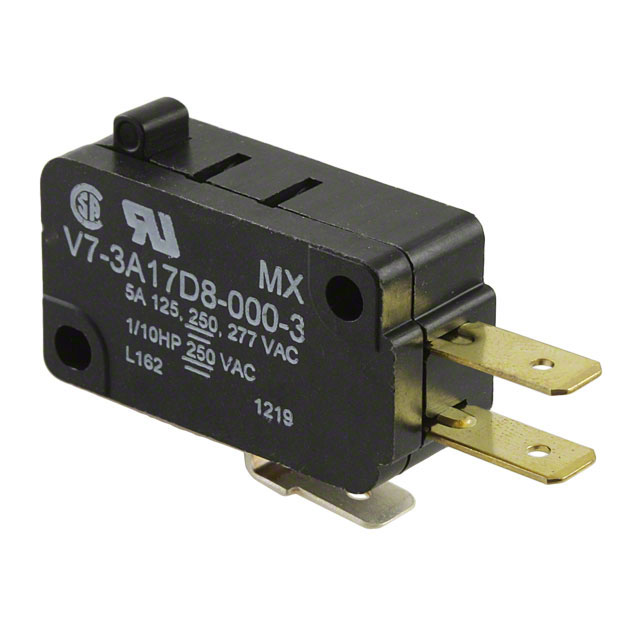

V7-3A17D8-000-3
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 5A 125V
Deep-Dive with AI
Search across all available documentation for this part.
V7-3A17D8-000-3
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 5A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | V7-3A17D8-000-3 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 5 A |
| Electrical Life | 100000 Cycles |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 60 gf |
| Operating Position | 0.579 in |
| Operating Position | 14.7 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 1.27 mm |
| Overtravel | 0.05 in |
| Pretravel | 0.047 in |
| Pretravel | 1.2 mm |
| Release Force | 11 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
V7-3A1 Series
Switch SPDT Chassis Mount
