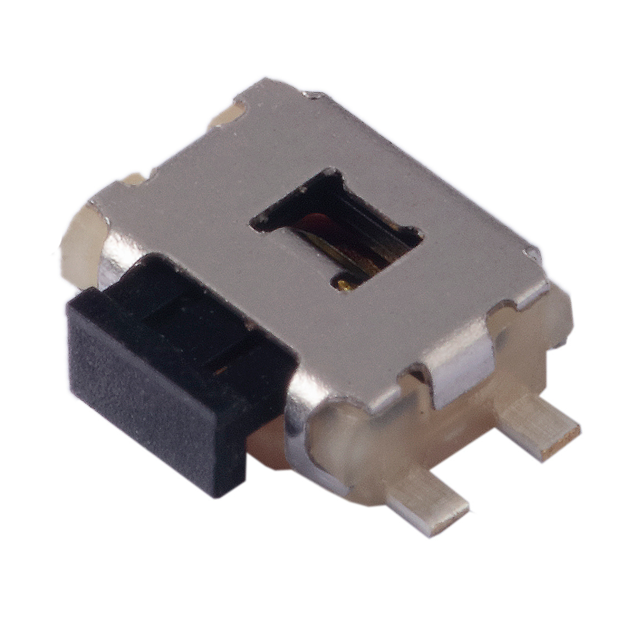

223HMSABR

Active

Tusonix a Subsidiary of CTS Electronic Components

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Tusonix a Subsidiary of CTS Electronic Components

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	223HMSABR

Actuator Length, Right Angle [x]	4.5 mm
Actuator Orientation	Side Actuated
Actuator Type	Rectangular Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount, Right Angle
Operating Force	220 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6.4 mm
Outline [y]	3.5 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.3 mm
Termination Style	Gull Wing

Part	Actuator Type	Contact Rating @ Voltage	Illumination	Outline [x]	Outline [y]	Switch Travel [custom]	Switch Function	Operating Force	Mechanical Life	Mounting Type	Actuator Length, Right Angle [x]	Actuator Orientation	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Features	Switch Travel
Tusonix a Subsidiary of CTS Electronic Components 223HMSABR	Rectangular Button	0.05 A 12 VDC	Non-Illuminated	6.4 mm	3.5 mm	0.3 mm	Off-Mom	220 gf	100000 Cycles	Surface Mount Right Angle	4.5 mm	Side Actuated	Gull Wing	85 °C	-40 °C	SPST-NO
Tusonix a Subsidiary of CTS Electronic Components 223HMSABRB	Rectangular Button	0.05 A 12 VDC	Non-Illuminated	6.4 mm	3.5 mm	0.3 mm	Off-Mom	220 gf	100000 Cycles	Surface Mount Right Angle	4.5 mm	Side Actuated	Gull Wing	85 °C	-40 °C	SPST-NO	Grounding Pin
Tusonix a Subsidiary of CTS Electronic Components 223HMSABRBG	Rectangular Button	0.05 A 12 VDC	Non-Illuminated	6.4 mm	3.5 mm	0.3 mm	Off-Mom	220 gf	100000 Cycles	Surface Mount Right Angle	4.5 mm	Side Actuated	Gull Wing	85 °C	-40 °C	SPST-NO	Board Guide Grounding Pin
Tusonix a Subsidiary of CTS Electronic Components 223HMSAARBG	Rectangular Button	0.05 A 12 VDC	Non-Illuminated	6.4 mm	3.5 mm		Off-Mom		200000 Cycles	Surface Mount Right Angle	4.5 mm	Side Actuated	Gull Wing	85 °C	-40 °C	SPST-NO	Board Guide Grounding Pin	0.25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	13200	$ 0.20

General part information

Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
