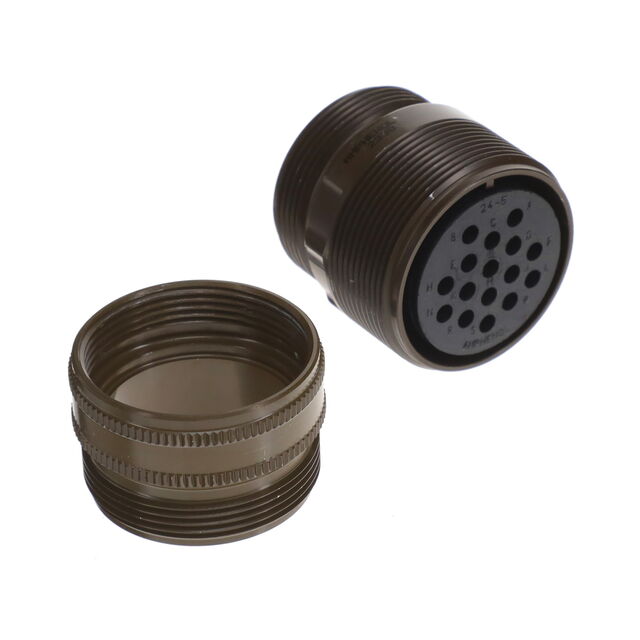

MS3101A24-5S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3101A24-5S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3101A24-5S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	16
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	24-5
Shielding	Unshielded

MS3101A24 Series

Part	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Applications	Qualification	Contact Finish - Mating	Color	Shell Material	Mounting Type	Number of Positions	Ingress Protection	Orientation	Shielding	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Insert Material	Shell Finish	Voltage Rating	Contact Material	Current Rating (Amps)	Number of Positions	Grade	Shell Size - Insert
Amphenol Industrial Operations MS3101A24-19P
Amphenol Industrial Operations MS3101A24-28P-RES	Metal	-55 °C	125 °C	Male Pins Receptacle	Marine Military	MIL-5015	Silver	Olive Drab	Aluminum Alloy	Free Hanging (In-Line)	24	Environment Resistant	N	Unshielded	28	24	Neoprene	Olive Drab Chromate over Cadmium	200 VAC 250 VDC	Copper Alloy
Amphenol Industrial Operations MS3101A24-5S	Metal	-55 °C	125 °C	Receptacle Female Sockets	Marine Military	MIL-DTL-5015	Silver	Olive Drab	Aluminum Alloy	Free Hanging (In-Line)		Environment Resistant	N	Unshielded			Neoprene	Olive Drab Chromate over Cadmium		Copper Alloy	13 A	16	Military	24-5
Amphenol Industrial Operations MS3101A24-10P-RES	Metal	-55 °C	125 °C	Male Pins Receptacle	Marine Military	MIL-5015	Silver	Olive Drab	Aluminum Alloy	Free Hanging (In-Line)	7	Environment Resistant	N	Unshielded	10	24	Neoprene	Olive Drab Chromate over Cadmium	500 VAC 700 VDC	Copper Alloy
Amphenol Industrial Operations MS3101A24-10S
Amphenol Industrial Operations MS3101A24-22S
Amphenol Industrial Operations MS3101A24-15P
Amphenol Industrial Operations MS3101A24-20P
Amphenol Industrial Operations MS3101A24-15S
Amphenol Industrial Operations MS3101A24-20S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 47.54
		10	$ 43.63
		25	$ 41.95
		50	$ 40.55
		100	$ 38.31
		250	$ 37.20

Description

General part information

MS3101A24 Series

16 Position Circular Connector Receptacle, Female Sockets Solder Cup
