09400009956

Active

HARTING Technology Group

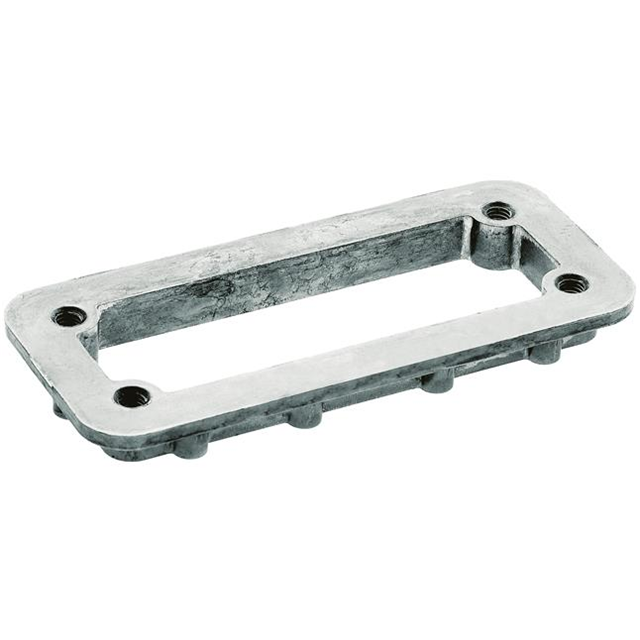

16 HPR SCREW MOUNTING FRAME FOR HC MODULAR

Search across all available documentation for this part.

Active

HARTING Technology Group

16 HPR SCREW MOUNTING FRAME FOR HC MODULAR

Technical Specifications

Parameters and characteristics for this part

Specification	09400009956

Accessory Type	Mounting Frame
For Use With/Related Products	Han® HPR Housings
Specifications	M6 Thread

Part	For Use With/Related Products	Accessory Type	Specifications	Gender	Material	Includes	Size	Frame Type	Operating Temperature [Max]	Operating Temperature [Min]	Size
HARTING Technology Group 09400009913	Han® HPR Housings	O-Ring
HARTING Technology Group 09400009933	Han® HPR Housings	Locking Screw
HARTING Technology Group 09400009944
HARTING Technology Group 09400009956	Han® HPR Housings	Mounting Frame	M6 Thread
HARTING Technology Group 09400009965				Non-Gendered	Metal	1 Frame 1 pc	48 B	Mounting Frame	125 °C	-40 °C
HARTING Technology Group 09400009911	Han® HPR Housings	O-Ring
HARTING Technology Group 09400009902				Non-Gendered	Metal	1 Frame 1 pc		Fixed Frame	125 °C	-40 °C	10B
HARTING Technology Group 09400009910	Han® HPR Housings	O-Ring
HARTING Technology Group 09400009914	Han® HPR Housings	O-Ring
HARTING Technology Group 09400009937		Locking Screw	M6 Thread

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Mounting Frame
