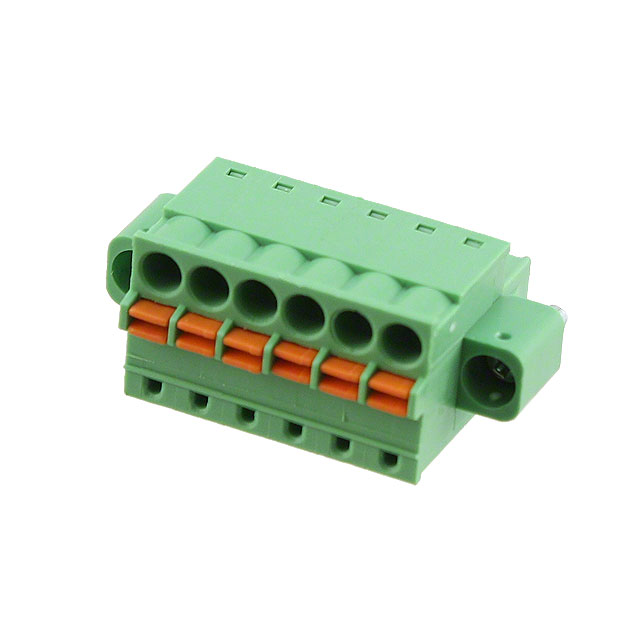

HW0610520000G

Active

Amphenol Anytek

TERM BLOCK PLUG 6POS STR 3.5MM

Deep-Dive with AI

Search across all available documentation for this part.

HW0610520000G

Active

Amphenol Anytek

TERM BLOCK PLUG 6POS STR 3.5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW0610520000G

Color	Green
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Current - UL	8 A
Features	Mating Flange
Housing Material	Thermoplastic Resin
Insulation Height [custom]	0.488 in
Insulation Height [custom]	12.4 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	6
Termination Style	Push-In Spring, Screwless - Leg Spring
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	16 AWG
Wire Gauge or Range - mm²	1.5 mm²
Wire Strip Length [Max]	9 mm
Wire Strip Length [Min]	8 mm

HW06 Series

Part	Type	Current - UL	Housing Material	Material Flammability Rating	Termination Style	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Positions Per Level	Contact Mating Finish	Mounting Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Levels	Insulation Height	Insulation Height	Color	Wire Strip Length [Min]	Wire Strip Length [Max]	Number of Positions	Contact Material	Insulation Height [custom]	Insulation Height [custom]	Features	Wire Gauge or Range - mm²	Wire Strip Length
Amphenol Anytek HW0650840000G	Plug Female Sockets	10 A	Thermoplastic	UL94 V-0	Push-In Spring Screwless - Leg Spring	300 V	-40 °C	115 °C	0.2 in	5.08 mm	6	Tin	Free Hanging (In-Line)	12 AWG	26 AWG	1	0.591 in	15 mm	Gray	9 mm	10 mm	6	Phosphor Bronze
Amphenol Anytek HW0610520000G	Plug Female Sockets	8 A	Thermoplastic Resin	UL94 V-0	Push-In Spring Screwless - Leg Spring	300 V	-40 °C	115 °C	0.138 in	3.5 mm	6	Tin	Free Hanging (In-Line)	16 AWG	28 AWG	1			Green	8 mm	9 mm	6	Copper Alloy	0.488 in	12.4 mm	Mating Flange	1.5 mm²
Amphenol Anytek HW0610500000G	Plug Female Sockets	8 A	Thermoplastic	UL94 V-0	Push-In Spring Screwless - Leg Spring	300 V	-40 °C	115 °C	0.138 in	3.5 mm	6	Tin	Free Hanging (In-Line)	16 AWG	28 AWG	1			Green	8 mm	9 mm	6	Phosphor Bronze	0.488 in	12.4 mm
Amphenol Anytek HW0670830000G	Plug Female Sockets	10 A	Thermoplastic	UL94 V-0	Push-In Spring Screwless - Leg Spring	300 V	-40 °C	115 °C	0.197 in	5 mm	6	Tin	Free Hanging (In-Line)	12 AWG	26 AWG	1	0.591 in	15 mm	Gray	9 mm	10 mm	6	Phosphor Bronze			Mating Flange Retention Latches (Non-Wire Side)
Amphenol Anytek HW0650050000G	Plug Female Sockets	10 A	Thermoplastic	UL94 V-0	Push-In Spring Screwless - Leg Spring	300 V	-40 °C	115 °C	0.2 in	5.08 mm	6	Tin	Free Hanging (In-Line)	12 AWG	26 AWG	1	0.591 in	15 mm	Black	9 mm	10 mm	6	Phosphor Bronze			Mating Flange Retention Latches (Non-Wire Side)
Amphenol Anytek HW0610820000G	Plug Female Sockets	8 A	Thermoplastic	UL94 V-0	Push-In Spring Screwless - Leg Spring	300 V	-40 °C	115 °C	0.138 in	3.5 mm	6	Tin	Free Hanging (In-Line)	16 AWG	28 AWG	1			Gray	8 mm	9 mm	6	Phosphor Bronze	0.488 in	12.4 mm	Mating Flange
Amphenol Anytek HW0610000000G	Plug Female Sockets	8 A	Thermoplastic	UL94 V-0	Push-In Spring Screwless - Leg Spring	300 V	-40 °C	115 °C	0.138 in	3.5 mm	6	Tin	Free Hanging (In-Line)	16 AWG	28 AWG	1			Black			6	Phosphor Bronze	0.488 in	12.4 mm			9 mm
Amphenol Anytek HW0670800000G	Plug Female Sockets	10 A	Thermoplastic	UL94 V-0	Push-In Spring Screwless - Leg Spring	300 V	-40 °C	115 °C	0.197 in	5 mm	6	Tin	Free Hanging (In-Line)	12 AWG	26 AWG	1	0.591 in	15 mm	Gray	8 mm	9 mm	6	Phosphor Bronze
Amphenol Anytek HW0600820000G	Plug Female Sockets	10 A	Thermoplastic	UL94 V-0	Push-In Spring Screwless - Leg Spring	300 V	-40 °C	115 °C	0.3 in	7.62 mm	6	Tin	Free Hanging (In-Line)	12 AWG	26 AWG	1	0.591 in	15 mm	Gray			6	Phosphor Bronze			Mating Flange Retention Latches (Non-Wire Side)		9 mm
Amphenol Anytek HW0650020000G	Plug Female Sockets	10 A	Thermoplastic	UL94 V-0	Push-In Spring Screwless - Leg Spring	300 V	-40 °C	115 °C	0.2 in	5.08 mm	6	Tin	Free Hanging (In-Line)	12 AWG	26 AWG	1	0.591 in	15 mm	Black			6	Phosphor Bronze			Mating Flange Retention Latches (Non-Wire Side)		9 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2080	$ 0.88

Description

General part information

HW06 Series

6 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources

No documents available
