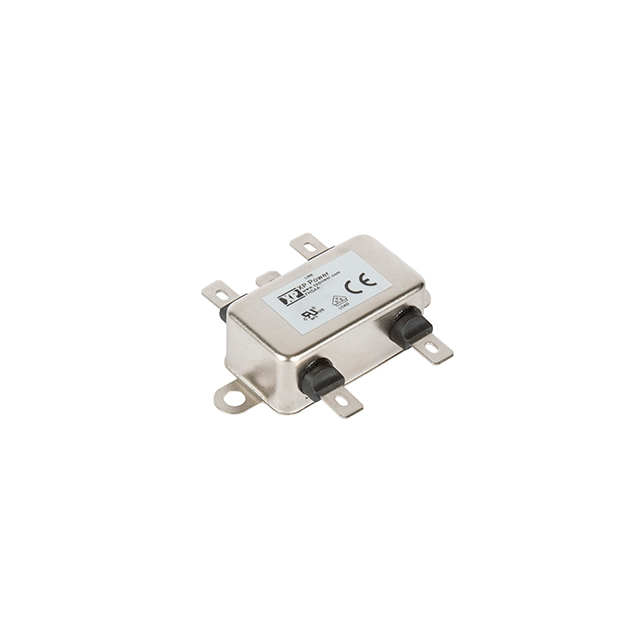

FHSAA10A1FR
ActiveXP POWER
LINE FILTER 250VAC 10A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FHSAA10A1FR
ActiveXP POWER
LINE FILTER 250VAC 10A CHASSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FHSAA10A1FR |
|---|---|
| Applications | ITE |
| Approval Agency | UL, EN |
| Configuration | Single Stage |
| Current | 10 A |
| Filter Type | Single Phase |
| Frequency - Operating | 400 Hz |
| Inductance | 300 µH |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 14.10 | |
| 5 | $ 13.68 | |||
| 10 | $ 13.25 | |||
| 25 | $ 12.69 | |||
| 100 | $ 11.84 | |||
Description
General part information
FHSAA10 Series
Single Phase EMC/EMI Line Filter 10 A 250V DC ~ 400Hz Single Stage Quick Connect
