Technical Specifications
Parameters and characteristics for this part
| Specification | ROX1SF22K |
|---|---|
| Composition | Metal Oxide Film |
| Features | Flame Proof, Safety, Pulse Withstanding |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 1 W |
| Resistance | 22 kOhms |
| Size / Dimension [diameter] | 0.138 in |
| Size / Dimension [diameter] | 3.5 mm |
| Size / Dimension [x] | 10 mm |
| Size / Dimension [x] | 0.394 " |
| Supplier Device Package | Axial |
| Temperature Coefficient | 350 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ROX1 Series

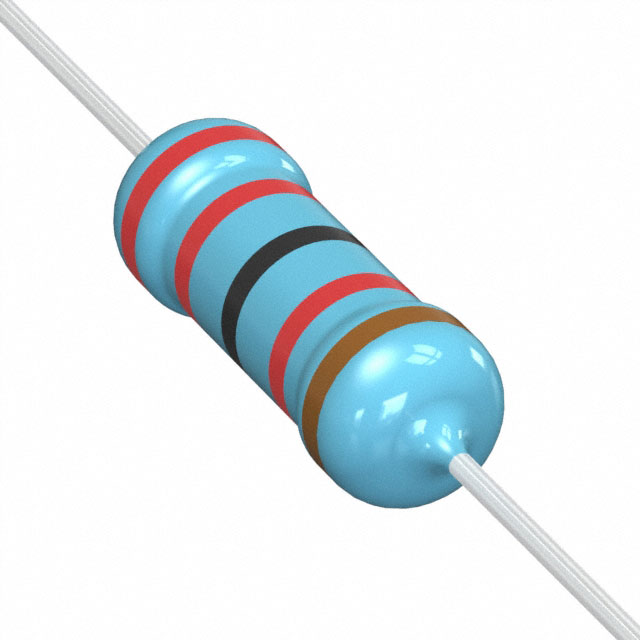

22 kOhms ±1% 1W Through Hole Resistor Axial Flame Proof, Pulse Withstanding, Safety Metal Oxide Film
