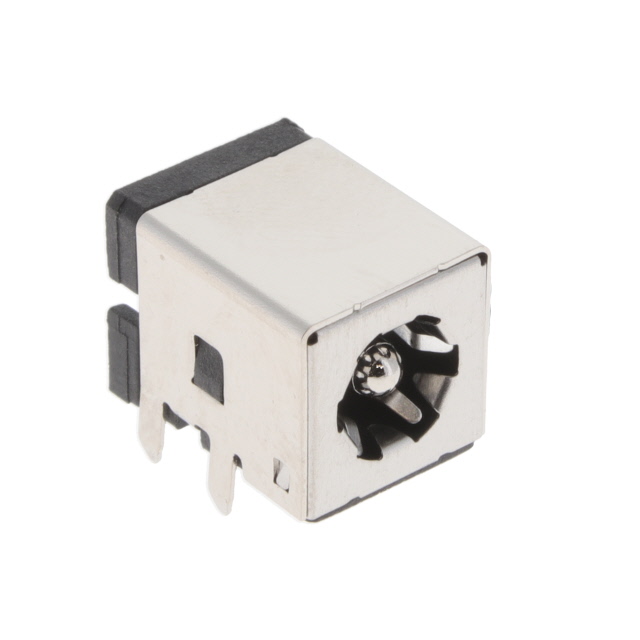

ADC-096-2-T/R
ActiveAdam Tech
DC POWER JACK
Deep-Dive with AI
Search across all available documentation for this part.
ADC-096-2-T/R
ActiveAdam Tech
DC POWER JACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ADC-096-2-T/R |
|---|---|
| Actual Diameter [diameter] | 0.209 in, 0.098 in, 2.5 mm, 5.3 mm |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 4 A |
| Features | Board Guide |
| Gender | Male |
| Housing Material | Thermoplastic |
| Industry Recognized Mating Diameter [diameter] | 5.5 mm, 2.5 mm |
| Industry Recognized Mating Diameter [diameter] | 0.098 ", 0.217 " |
| Insulation Color | Black |
| Internal Switch(s) | False |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Shielding | Shielded |
| Termination | Solder |
| Voltage - Rated | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.71 | |
| 10 | $ 1.30 | |||
| 25 | $ 1.17 | |||
| 50 | $ 1.08 | |||
| 100 | $ 1.00 | |||
| Tape & Reel (TR) | 200 | $ 0.93 | ||
| 400 | $ 0.86 | |||
| 600 | $ 0.83 | |||
| 1000 | $ 0.78 | |||
| 1400 | $ 0.76 | |||
| 2000 | $ 0.73 | |||
| 5000 | $ 0.67 | |||
| 10000 | $ 0.62 | |||
Description
General part information
ADC-096 Series
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle
