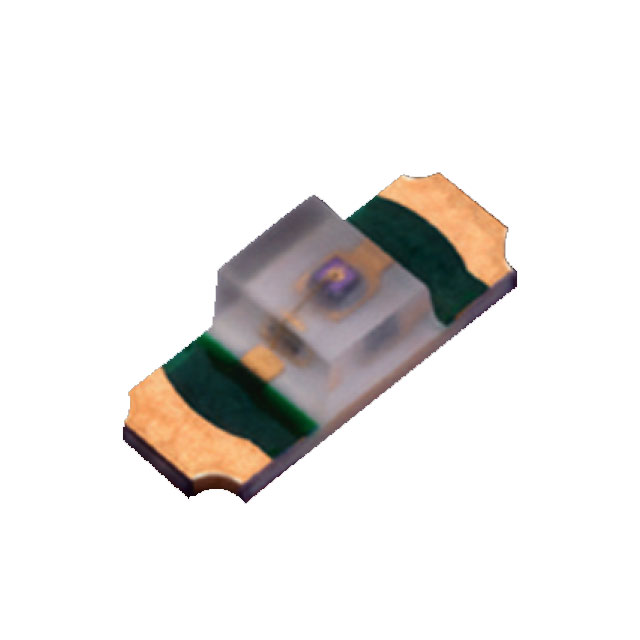

SML-810MTT86
NRNDRohm Semiconductor
LED GREEN CLEAR 3412 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SML-810MTT86
NRNDRohm Semiconductor
LED GREEN CLEAR 3412 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SML-810MTT86 |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 1.15 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.2 mm |
| Lens Size [y] | 1.25 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 16 mcd |
| Mounting Type | Surface Mount, Bottom Entry |
| Package / Case | 3412 Metric |
| Package / Case | 1305 |
| Size / Dimension [x] | 3.4 mm |
| Size / Dimension [y] | 1.25 mm |
| Supplier Device Package | 3412(1305) |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Peak | 570 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.63 | |
| 10 | $ 0.39 | |||
| 100 | $ 0.22 | |||
| 1000 | $ 0.17 | |||
| Digi-Reel® | 1 | $ 0.63 | ||
| 10 | $ 0.39 | |||
| 100 | $ 0.22 | |||
| 1000 | $ 0.17 | |||
| Tape & Reel (TR) | 3000 | $ 0.16 | ||
| 6000 | $ 0.15 | |||
| 15000 | $ 0.14 | |||
| 30000 | $ 0.13 | |||
| 75000 | $ 0.13 | |||
Description
General part information
SML-810 Series
Green LED Indication - Discrete 2.2V 1305 (3412 Metric)
