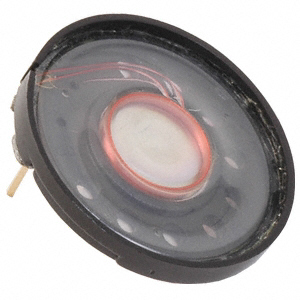

CLS0281MP

Active

CUI Devices

SPEAKER 8OHM 200MW TOP PORT 82DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 8OHM 200MW TOP PORT 82DB

Technical Specifications

Parameters and characteristics for this part

Specification	CLS0281MP

Efficiency - dBA	82 dBA
Efficiency - Testing	200mW/500mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	850 Hz
Frequency Range [Max]	6 kHz
Frequency Range [Min]	850 Hz
Height - Seated (Max)	4.2 mm
Height - Seated (Max) [Max]	0.165 in
Impedance	8 Ohms
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Port Location	Top
Power - Rated	200 mW
Shape	Round
Size / Dimension [diameter]	1.102 in
Size / Dimension [diameter]	28 mm
Technology	Magnetic
Termination	PC Pins
Type	Low Profile

Part	Frequency - Self Resonant	Efficiency - dBA	Termination	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Technology	Height - Seated (Max) [Max]	Height - Seated (Max)	Material - Cone	Efficiency - Testing	Frequency Range [Min]	Frequency Range [Max]	Material - Magnet	Efficiency - Type	Impedance	Shape	Power - Rated	Port Location
CUI Devices CLS0281MP	850 Hz	82 dBA	PC Pins	1.102 in	28 mm	Low Profile	Magnetic	0.165 in	4.2 mm	Polyester Polyethylene Terephthalate (PET)	200mW/500mm	850 Hz	6 kHz	Nd-Fe-B	Sound Pressure Level (SPL)	8 Ohms	Round	200 mW	Top

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Ohms Low Profile Speaker 200 mW 850 Hz ~ 6 kHz Top Round
