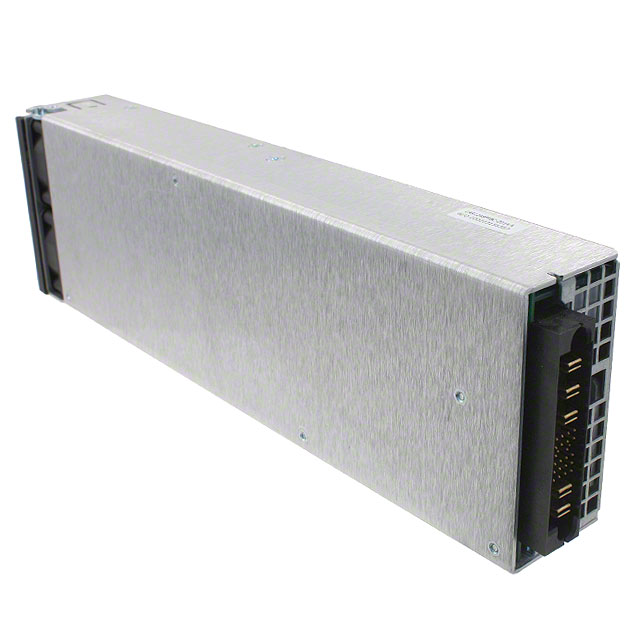

CAR1248FPB-Z01A

Active

OmniOn Power™

AC/DC CONVERTER 48V 850W

Search across all available documentation for this part.

Active

OmniOn Power™

AC/DC CONVERTER 48V 850W

Technical Specifications

Parameters and characteristics for this part

Specification	CAR1248FPB-Z01A

Applications	ITE (Commercial)
Current - Output 1	25 A
Efficiency	92 %
Features	Load Sharing, PMBus™, Universal Input, Standby Output, Remote Sense, Adjustable Output, PFC, Hot Swappable, I2C Interface
Minimum Load Required	False
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Size / Dimension [x]	284.5 mm
Size / Dimension [x]	11.2 in
Size / Dimension [y]	87.4 mm
Size / Dimension [y]	3.44 in
Size / Dimension [z]	41.9 mm
Size / Dimension [z]	1.65 "
Type	Front End
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Voltage - Isolation	Mounting Type	Minimum Load Required	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Current - Output 1	Efficiency	Features	Type	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]
OmniOn Power™ CAR1248FPB-Z01A	3000 V	Rack Mount		48 V	284.5 mm	87.4 mm	41.9 mm	3.44 in	11.2 in	1.65 "	ITE (Commercial)	25 A	92 %	Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	Front End	1	-10 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	5	$ 519.96

General part information

Front End AC DC Converters 1 Output 48V 85 ~ 264 VAC Input
