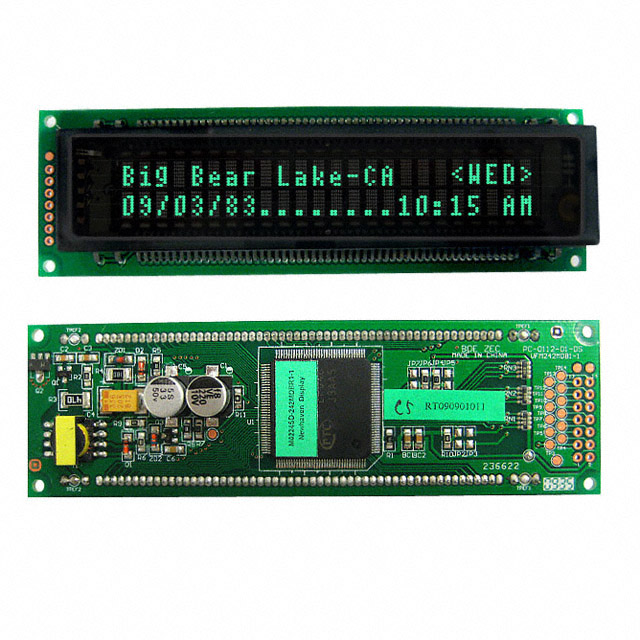

M0224SD-242MDBR1-1
ObsoleteNewhaven Display Intl
MODULE VF CHAR 2X24 5.34MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M0224SD-242MDBR1-1
ObsoleteNewhaven Display Intl
MODULE VF CHAR 2X24 5.34MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M0224SD-242MDBR1-1 |
|---|---|
| Character Size [y] | 2.1 mm |
| Character Size [z] | 5.29 mm |
| Display Format [x] | 24 |
| Display Format [y] | 2 |
| Display Type | Character |
| Format [x] | 5 Dots |
| Format [y] | 8 Dots |
| Interface | Parallel |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 118 mm |
| Outline L x W x H [y] | 36 mm |
| Outline L x W x H [z] | 16.5 mm |
| Viewing Area [x] | 84.2 mm |
| Viewing Area [y] | 11.5 mm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M0224SD Series
Vacuum Fluorescent Display (VFD) 24 x 2 Character 4.5V ~ 5.5V Parallel 118.00mm x 36.00mm x 16.50mm
