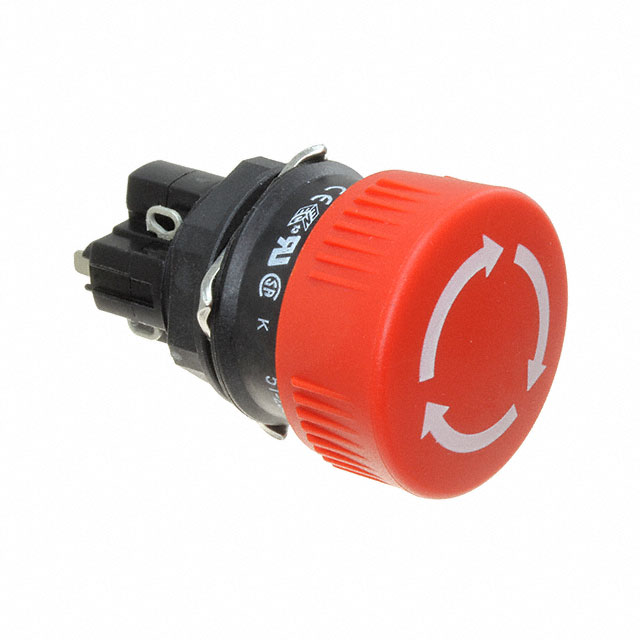

51-256.025

Active

EAO

SWITCH ESTOP TWIST RESET 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH ESTOP TWIST RESET 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	51-256.025

Circuit	DPST-NO/NC
Current Rating (Amps)	5 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Reset Operation	Twist
Switch Function	On-Off, Off-On
Termination Style	Solder Lug
Voltage Rating - AC	250 V

Part	Current Rating (Amps)	Ingress Protection	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Termination Style	Mounting Type	Reset Operation	Circuit	Voltage Rating - DC	Depth Behind Flange	Angle of Throw	Features	Contact Timing	Number of Positions	Key Removable Positions	Actuator Type
EAO 51-256.025	5 A	IP65 - Dust Tight Water Resistant	16 mm	250 V	55 °C	-25 °C	Off-On On-Off	Solder Lug	Panel Mount Front	Twist	DPST-NO/NC
EAO 51-256.026	100 mA	IP65 - Dust Tight Water Resistant	16 mm	42 V	55 °C	-25 °C	On-Off	PC Pin Solder Lug	Panel Mount Front	Twist	SPST-NC	42 V
EAO 51-256.025D	5 A		16 mm	250 V	55 °C	-25 °C	Off-On On-Off	Solder Lug			4PST-2NO/2NC		34 mm	90 °	IP65	Not Specified	2	1 only	Flat Key

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SWITCH ESTOP TWIST RESET 5A 250V
