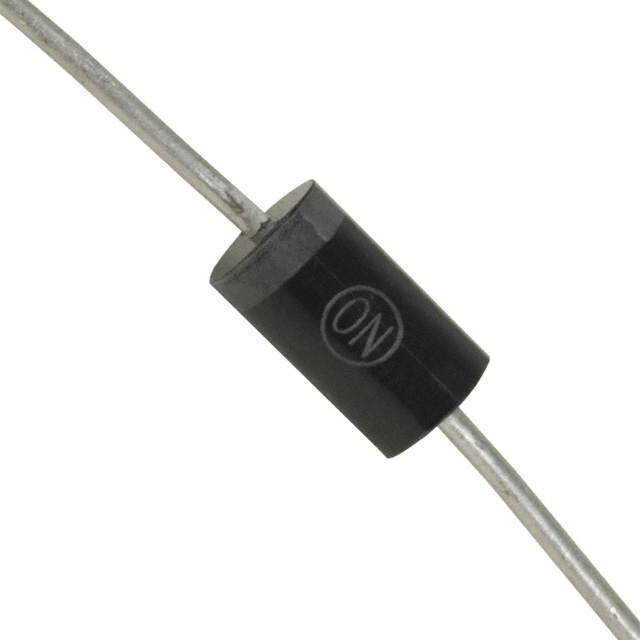

1N6373RL4

Obsolete

ON Semiconductor

TVS DIODE 5V 9.4V AXIAL

Search across all available documentation for this part.

Obsolete

ON Semiconductor

TVS DIODE 5V 9.4V AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	1N6373RL4

Applications	General Purpose
Current - Peak Pulse (10/1000µs)	160 A
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-65 °C
Package / Case	DO-201AD, Axial
Power - Peak Pulse	1.5 kW
Power - Peak Pulse	1500 W
Power Line Protection	False
Supplier Device Package	Axial
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	6 V
Voltage - Clamping (Max) @ Ipp	9.4 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Unidirectional Channels [custom]	Applications	Voltage - Reverse Standoff (Typ)	Type	Voltage - Clamping (Max) @ Ipp	Power Line Protection	Power - Peak Pulse	Power - Peak Pulse	Current - Peak Pulse (10/1000µs)	Voltage - Breakdown (Min) [Min]	Supplier Device Package
ON Semiconductor 1N6373RL4	175 ░C	-65 °C	Through Hole	DO-201AD Axial	1	General Purpose	5 V	Zener	9.4 V		1.5 kW	1500 W	160 A	6 V	Axial
ON Semiconductor 1N6373	175 ░C	-65 °C	Through Hole	DO-201AD Axial	1	General Purpose	5 V	Zener	9.4 V		1.5 kW	1500 W		6 V	Axial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

9.4V Clamp 160A Ipp Tvs Diode Through Hole Axial

Technical documentation and resources
