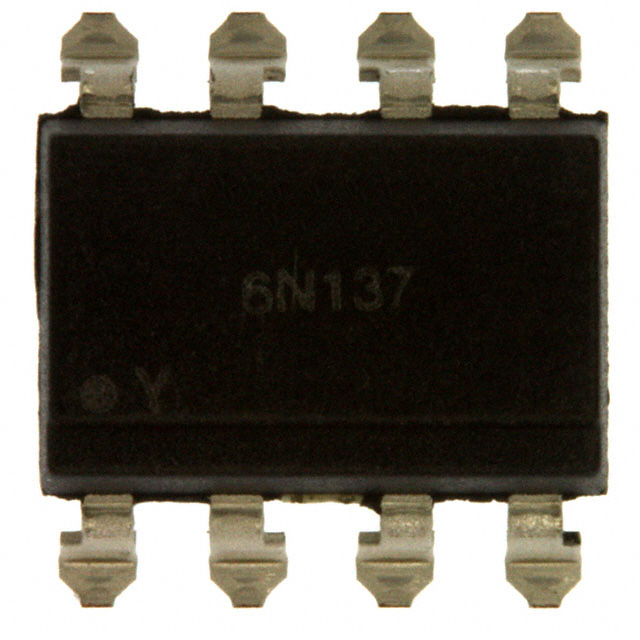

6N137S

Active

Diodes Inc

OPTOISO 5KV OPEN COLLECTOR 8-SMD

Search across all available documentation for this part.

Active

Diodes Inc

OPTOISO 5KV OPEN COLLECTOR 8-SMD

Technical Specifications

Parameters and characteristics for this part

Specification	6N137S

Common Mode Transient Immunity (Min) [Min]	10 kV/µs
Current - DC Forward (If) (Max) [Max]	20 mA
Current - Output / Channel	50 mA
Data Rate	15 Mbps
Input Type	DC
Inputs - Side 1/Side 2 [custom]	0
Inputs - Side 1/Side 2 [custom]	1
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Open Collector
Propagation Delay tpLH / tpHL (Max) [custom]	75 ns
Propagation Delay tpLH / tpHL (Max) [custom]	75 ns
Rise / Fall Time (Typ) [custom]	6.9 ns
Rise / Fall Time (Typ) [custom]	22 ns
Supplier Device Package	8-SMD
Voltage - Forward (Vf) (Typ)	1.38 V
Voltage - Supply	7 V

Part	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Output Type	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Mounting Type	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Data Rate	Input Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Current - DC Forward (If) (Max) [Max]	Current - Output / Channel	Common Mode Transient Immunity (Min) [Min]	Voltage - Supply	Number of Channels
Diodes Inc 6N137S	0	1	Open Collector	75 ns	75 ns	Surface Mount	1.38 V	8-SMD	15 Mbps	DC	6.9 ns	22 ns	85 °C	-40 °C	20 mA	50 mA	10 kV/µs	7 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Logic Output Optoisolator 15MBd Open Collector 5000Vrms 1 Channel 10kV/µs CMTI 8-SMD
