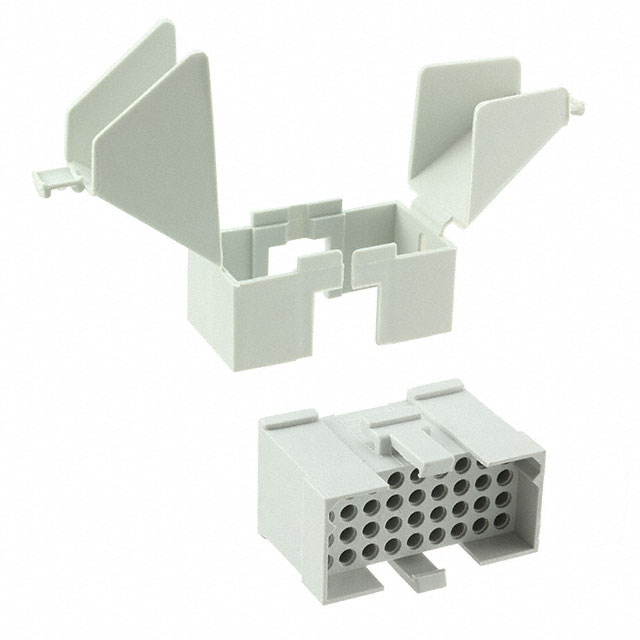

TFR36PH10

Active

ITT Cannon, LLC

CONN PLUG HSG 36POS 5.08MM

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN PLUG HSG 36POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	TFR36PH10

Color	Gray
Connector Type	Plug
Contact Termination	Crimp and Solder
Contact Type	Male or Female
Fastening Type	Latch Lock
Features	Strain Relief, Flame Retardant, Hood
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	36
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Row Spacing	5.08 mm
Row Spacing	0.2 in

Part	Insulation Material	Contact Termination	Note	Color	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Pitch [x]	Pitch [x]	Fastening Type	Mounting Type	Number of Positions	Row Spacing	Row Spacing	Features	Accessory Type	For Use With/Related Products
ITT Cannon, LLC TFR36PH10	Nylon Polyamide (PA)	Crimp and Solder	Contacts Not Included	Gray	Plug	105 ░C	-55 °C	Male or Female	0.2 in	5.08 mm	Latch Lock	Free Hanging (In-Line)	36	5.08 mm	0.2 in	Flame Retardant Hood Strain Relief
ITT Cannon, LLC TFR36AH10													36			Flame Retardant	Hood and Strain Relief	Trident Rectangular Plugs
ITT Cannon, LLC TFR36PA10	Nylon Polyamide (PA)	Crimp and Solder	Contacts Not Included	Gray	Plug	105 ░C	-55 °C	Male or Female	0.2 in	5.08 mm	Latch Lock	Free Hanging (In-Line)	36	5.08 mm	0.2 in	Flame Retardant
ITT Cannon, LLC TFR36RA10	Nylon Polyamide (PA)	Crimp and Solder	Contacts Not Included	Gray	Receptacle	105 ░C	-55 °C	Male or Female	0.2 in	5.08 mm	Latch Holder	Panel Mount Snap-In	36	5.08 mm	0.2 in	Flame Retardant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 17.91
Newark	Each	100	$ 21.90
		250	$ 21.53

General part information

36 Rectangular Connectors - Housings Plug Gray 0.200" (5.08mm)
