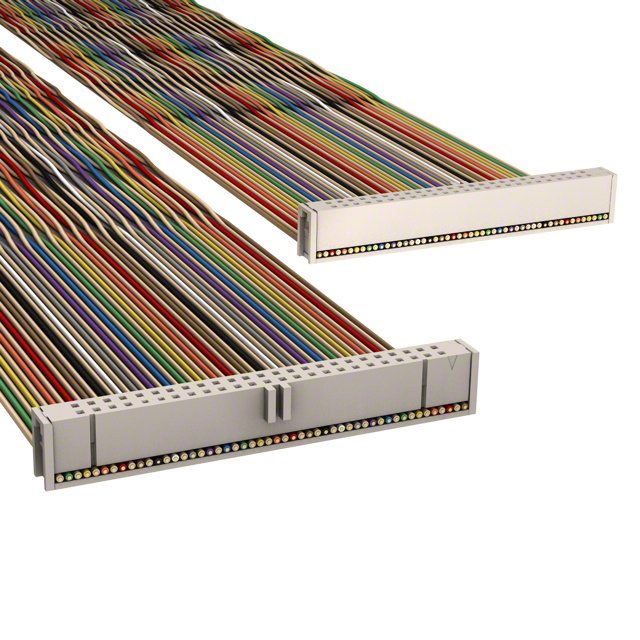

M3CCA-5040K

Active

3M (TC)

IDC CABLE - MKC50A/MC50F/MKC50A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 891 Series Datasheet +1

M3CCA-5040K

Active

3M (TC)

IDC CABLE - MKC50A/MC50F/MKC50A

Deep-Dive with AI

DocumentsDatasheet 891 Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3CCA-5040K

Cable Termination	IDC
Color	Multiple, Twisted Pair (Flat)
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key
Length [x]	1.02 m
Length [x]	3.34 ft
Number of Positions	50
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3CCA Series

Part	Features	Length [x]	Length [x]	Shielding	Pitch - Connector	Pitch - Connector	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Number of Rows	Number of Positions	Connector Type	Pitch - Cable	Pitch - Cable	Color	Length	Length	Length	Length	Number of Positions
3M (TC) M3CCA-2618J	Polarizing Key	457.2 mm	1.5 ft	Unshielded	0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	IDC	2	26	Socket to Socket	0.05 "	1.27 mm
3M (TC) M3CCA-3436R	Polarizing Key	914.4 mm	3 ft	Unshielded	0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	IDC	2	34	Socket to Socket	0.05 "	1.27 mm	Multiple Ribbon
3M (TC) M3CCA-2040K	Polarizing Key	1.02 m	3.34 ft	Unshielded	0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	IDC	2	20	Socket to Socket	0.05 "	1.27 mm	Multiple Twisted Pair (Flat)
3M (TC) M3CCA-4018R	Polarizing Key	457.2 mm	1.5 ft	Unshielded	0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	IDC	2	40	Socket to Socket	0.05 "	1.27 mm	Multiple Ribbon
3M (TC) M3CCA-3418R	Polarizing Key	457.2 mm	1.5 ft	Unshielded	0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	IDC	2	34	Socket to Socket	0.05 "	1.27 mm	Multiple Ribbon
3M (TC) M3CCA-3036J	Polarizing Key	914.4 mm	3 ft	Unshielded	0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	IDC	2	30	Socket to Socket	0.05 "	1.27 mm
3M (TC) M3CCA-5040K	Polarizing Key	1.02 m	3.34 ft	Unshielded	0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	IDC	2	50	Socket to Socket	0.05 "	1.27 mm	Multiple Twisted Pair (Flat)
3M (TC) M3CCA-6006J	Polarizing Key			Unshielded	0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	IDC	2	60	Socket to Socket	0.05 "	1.27 mm		152.4 mm	6 "	0.5 '
3M (TC) M3CCA-4020K	Polarizing Key			Unshielded	0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	IDC	2	40	Socket to Socket	0.05 "	1.27 mm	Multiple Twisted Pair (Flat)	508 mm			1.67 ft
3M (TC) M3CCA-1636R	Polarizing Key	914.4 mm	3 ft	Unshielded	0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	IDC	2		Socket to Socket	0.05 "	1.27 mm	Multiple Ribbon					16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.92
		10	$ 19.98
		25	$ 18.10
		50	$ 16.82
		100	$ 15.67
		250	$ 14.31
		500	$ 13.39

Description

General part information

M3CCA Series

50 Position Cable Assembly Rectangular Socket to Socket 3.34' (1.02m)

Documents

Technical documentation and resources

Datasheet

891 Series Datasheet

Datasheet

1700 Series

Datasheet
