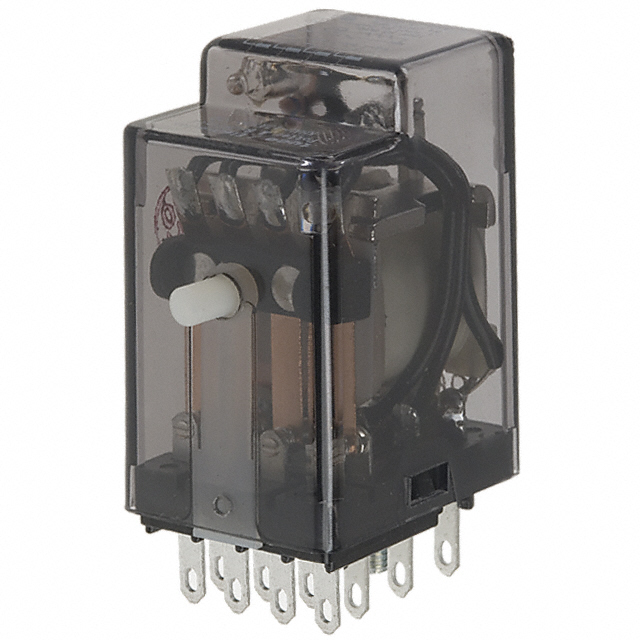

KHAU-17A12H-120
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 4PDT 5A 120V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KHAU-17A12H-120 |
|---|---|
| Approval Agency | CSA, UR |
| Coil Current | 11 mA |
| Coil Insulation | Class B |
| Coil Type | Non Latching |
| Coil Voltage | 120 VAC |
| Contact Form | 4PDT (4 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 5 A |
| Features | Test Button, Lighted Indicator |
| Mounting Type | Socketable |
| Must Operate Voltage | 102 VAC |
| Operate Time | 13 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -45 °C |
| Relay Type | General Purpose |
| Release Time | 6 ms |
| Switching Voltage | 240 VAC |
| Termination Style | Plug In |
KHAU-17A Series
| Part | Must Operate Voltage | Contact Rating (Current) | Release Time | Coil Voltage | Termination Style | Switching Voltage | Approval Agency | Coil Current | Operate Time | Coil Type | Features | Contact Material | Relay Type | Contact Form | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Coil Insulation | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Potter & Brumfield Relays | 102 VAC | 5 A | 6 ms | 120 VAC | Plug In | 240 VAC | CSA UR | 11 mA | 13 ms | Non Latching | Lighted Indicator Test Button | Silver Cadmium Oxide (AgCdO) | General Purpose | 4PDT (4 Form C) | Socketable | -45 °C | 70 °C | Class B | |
TE Connectivity Potter & Brumfield Relays | 204 VAC | 3 A | 6 ms | 240 VAC | Plug In | 240 VAC | CSA UR | 6 mA | 13 ms | Non Latching | Silver (Ag) | General Purpose | 4PDT (4 Form C) | Socketable | -45 °C | 70 °C | Class B | 12 kOhms | |
TE Connectivity Potter & Brumfield Relays | 204 VAC | 3 A | 6 ms | 240 VAC | Plug In | 240 VAC | CSA UR | 6 mA | 13 ms | Non Latching | Silver (Ag) | General Purpose | 4PDT (4 Form C) | Socketable | -45 °C | 70 °C | Class B | 12 kOhms | |
TE Connectivity Potter & Brumfield Relays | 3 A | 6 ms | 24 VAC | Plug In | 240 VAC | CSA UR | 52 mA | 13 ms | Non Latching | Silver (Ag) | General Purpose | 4PDT (4 Form C) | Socketable | -45 °C | 70 °C | Class B | 160 Ohms | ||
TE Connectivity Potter & Brumfield Relays | 10.2 VAC | 5 A | 6 ms | 12 VAC/DC | Plug In | 240 VAC | CSA UR | 100 mA | 13 ms | Non Latching | Silver Cadmium Oxide (AgCdO) | General Purpose | 4PDT (4 Form C) | Socketable | -45 °C | 70 °C | Class B | 43 Ohms | |
TE Connectivity Potter & Brumfield Relays | 5 A | 6 ms | 24 VAC | Plug In | 240 VAC | CSA UR | 52 mA | 13 ms | Non Latching | Silver Cadmium Oxide (AgCdO) | General Purpose | 4PDT (4 Form C) | Socketable | -45 °C | 70 °C | Class B | 160 Ohms | ||
TE Connectivity Potter & Brumfield Relays | 102 VAC | 5 A | 6 ms | 120 VAC | Plug In | 240 VAC | CSA UR | 11 mA | 13 ms | Non Latching | Silver Cadmium Oxide (AgCdO) | General Purpose | 4PDT (4 Form C) | Socketable | -45 °C | 70 °C | Class B |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.80 | |
| 10 | $ 22.61 | |||
| 25 | $ 21.42 | |||
| 50 | $ 20.23 | |||
| 100 | $ 19.04 | |||
| 250 | $ 17.85 | |||
| 500 | $ 16.66 | |||
Description
General part information
KHAU-17A Series
General Purpose Relay 4PDT (4 Form C) 120VAC Coil Socketable
