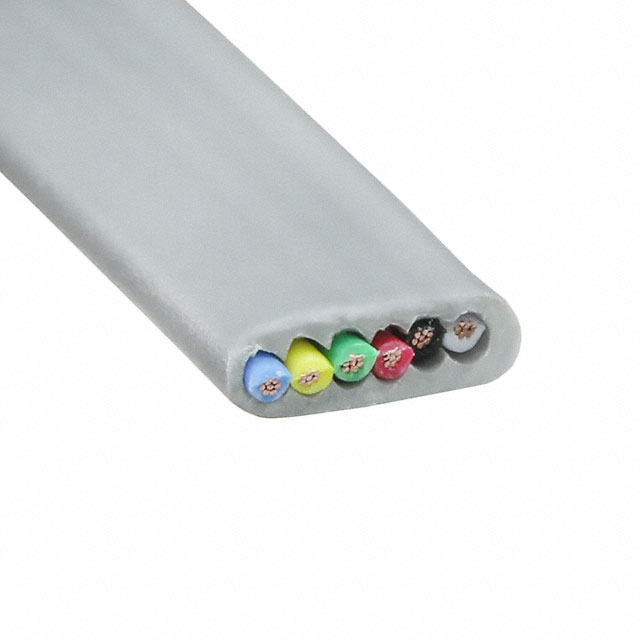

1606 SL030

Active

ALPHA WIRE

CABLE 6COND 26AWG SILVER 100M

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 6COND 26AWG SILVER 100M

Technical Specifications

Parameters and characteristics for this part

Specification	1606 SL030

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand	7 Strands, 34 AWG
Jacket (Insulation) Diameter [diameter]	6.86 mm
Jacket (Insulation) Diameter [diameter]	0.27 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.024 in
Jacket (Insulation) Thickness	0.61 mm
Jacket Color	Silver
Length	100 m
Length	328.1 ft
Number of Conductors	6
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	150 V
Wire Gauge	26 AWG

Part	Length	Length	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand	Jacket (Insulation) Material	Usage	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Jacket Color	Conductor Insulation	Voltage	Number of Conductors
ALPHA WIRE 1606 SL021	1000 ft	304.8 m	Multi-Conductor	-20 C	60 °C	6.86 mm	0.27 in	7 Strands 34 AWG	Poly-Vinyl Chloride (PVC)	Communication Control	26 AWG	0.024 in	0.61 mm	Copper Bare	Silver	Polypropylene (PP)	150 V	6
ALPHA WIRE 1606 SL030	328.1 ft	100 m	Multi-Conductor	-20 C	60 °C	6.86 mm	0.27 in	7 Strands 34 AWG	Poly-Vinyl Chloride (PVC)	Communication Control	26 AWG	0.024 in	0.61 mm	Copper Bare	Silver	Polypropylene (PP)	150 V	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Conductor Multi-Conductor Cable Silver 26 AWG 328.1' (100.0m)
