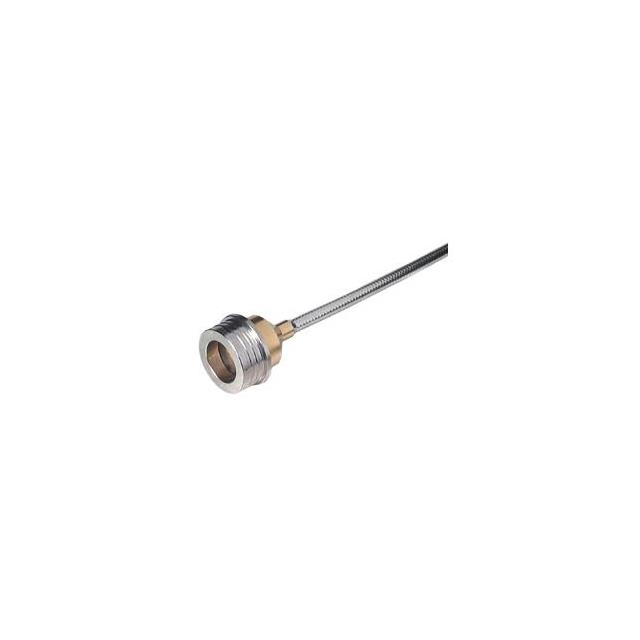

11_QN-50-3-3/113_NE

Active

Huber+Suhner, Inc.

11_QN-50-3-3/113_NE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

11_QN-50-3-3/113_NE

Active

Huber+Suhner, Inc.

11_QN-50-3-3/113_NE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	11_QN-50-3-3/113_NE

Body Finish	Gold
Body Material	Brass
Cable Group	RG-141
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	QN
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max [Max]	11 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	1000 VDC

11_QN-50 Series

Part	Frequency - Max [Max]	Center Contact Plating	Fastening Type	Body Material	Impedance	Dielectric Material	Body Finish	Contact Termination	Shield Termination	Housing Color	Cable Group	Voltage Rating	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Connector Type	Number of Ports	Center Contact Material
Huber+Suhner, Inc. 11_QN-50-3-3/113_NE	11 GHz	Gold	Push-Pull	Brass	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	Crimp	Solder	Gold	RG-141	1000 VDC	QN	125 °C	-40 °C	Free Hanging (In-Line)	Male Pin Plug	1	Beryllium Copper
Huber+Suhner, Inc. 11_QN-50-9-1/133_NE	11 GHz	Gold	Push-Pull	Brass	50 Ohms	Polytetrafluoroethylene (PTFE)	White Bronze	Crimp	Crimp	Silver	LMR-500	1000 VDC	QN	125 °C	-40 °C	Free Hanging (In-Line)	Male Pin Plug	1	Bronze
Huber+Suhner, Inc. 11_QN-50-3-2/133_NE	11 GHz	Gold	Push-Pull	Brass	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	White Bronze	Crimp	Crimp	Silver	RG-58	1000 VDC	QN	125 °C	-40 °C	Free Hanging (In-Line)	Male Pin Plug	1	Brass
Huber+Suhner, Inc. 11_QN-50-7-1/133_NE	11 GHz	Gold	Push-Pull	Brass	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	White Bronze	Crimp	Crimp	Silver	RG-214	1000 VDC	QN	125 °C	-40 °C	Free Hanging (In-Line)	Male Pin Plug	1	Brass
Huber+Suhner, Inc. 11_QN-50-7-2/133_NE	11 GHz	Gold	Push-Pull	Brass	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	White Bronze	Crimp	Crimp	Silver	RG-393	1000 VDC	QN	125 °C	-40 °C	Free Hanging (In-Line)	Male Pin Plug	1	Brass
Huber+Suhner, Inc. 11_QN-50-3-4/133_NE	11 GHz	Gold	Push-Pull	Brass	50 Ohms	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	White Bronze	Crimp	Crimp	Silver	RG-400	1000 VDC	QN	125 °C	-40 °C	Free Hanging (In-Line)	Male Pin Plug	1	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.05

Description

General part information

11_QN-50 Series

QN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
