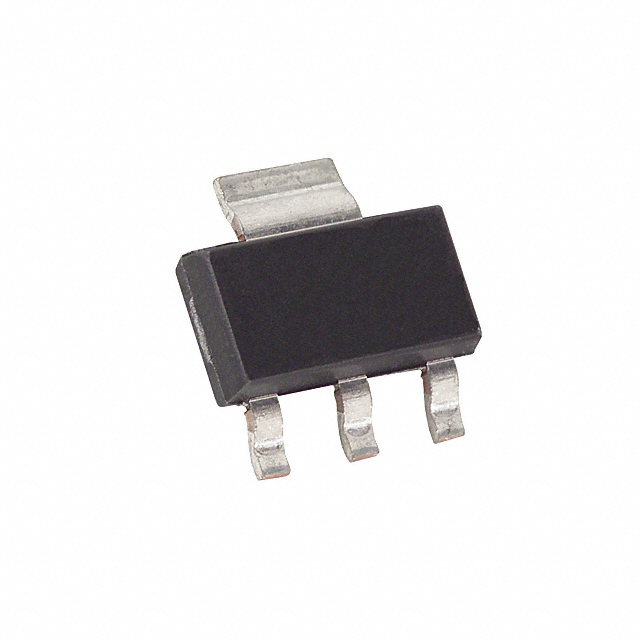

DS2405Z+T&R

Obsolete

Analog Devices Inc./Maxim Integrated

IC INTFACE SPECIALIZED SOT223-3

Search across all available documentation for this part.

Obsolete

Analog Devices Inc./Maxim Integrated

IC INTFACE SPECIALIZED SOT223-3

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Interface	Package / Case	Mounting Type
Analog Devices Inc./Maxim Integrated DS2405Z+T&R	2.8 V	6 V	SOT-223-3	1-Wire®	TO-261-4 TO-261AA	Surface Mount
Analog Devices Inc./Maxim Integrated DS2405P+	2.8 V	6 V	6-TSOC	1-Wire®	6-SMD J-Lead	Surface Mount
Analog Devices Inc./Maxim Integrated DS2405+	2.8 V	6 V	TO-92-3	1-Wire®	TO-226-3 TO-92-3	Through Hole
Analog Devices Inc./Maxim Integrated DS2405P	2.8 V	6 V	6-TSOC	1-Wire®	6-SMD J-Lead	Surface Mount
Analog Devices Inc./Maxim Integrated DS2405+T&R	2.8 V	6 V	TO-92-3	1-Wire®	TO-226-3 TO-92-3	Through Hole
Analog Devices Inc./Maxim Integrated DS2405P+T&R	2.8 V	6 V	6-TSOC	1-Wire®	6-SMD J-Lead	Surface Mount
Analog Devices Inc./Maxim Integrated DS2405Z+	2.8 V	6 V	SOT-223-3	1-Wire®	TO-261-4 TO-261AA	Surface Mount
Analog Devices Inc./Maxim Integrated DS2405/T&R	2.8 V	6 V	TO-92-3	1-Wire®	TO-226-3 TO-92-3	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Interface SOT-223-3

Technical documentation and resources
