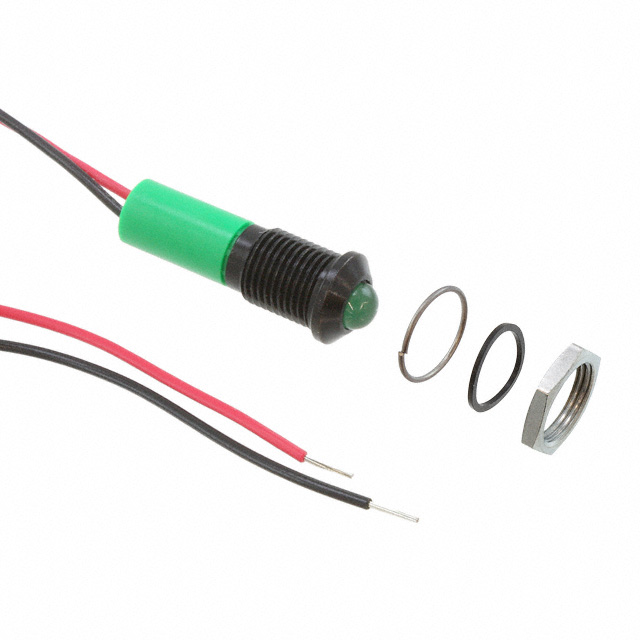

Q8P3BXXHG110E

Active

APEM

LED INDICATOR 8MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

APEM

LED INDICATOR 8MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	Q8P3BXXHG110E

Current	6 mA
Ingress Protection	IP67
Lamp Color	Green
Lens Color	Green
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating	1900 mcd
Panel Cutout Dimensions [custom]	0.31 in
Panel Cutout Dimensions [custom]	7.87 mm
Panel Cutout Shape	Round
Ratings	AC
Termination Style	Wire Leads - 7.87" (200.00mm)
Type	LED
Viewing Angle	100 °
Voltage	110 V

Part	Ingress Protection	Current	Type	Lens Color	Millicandela Rating	Termination Style	Lens Size	Lens Size	Lamp Color	Ratings	Lens Transparency	Lens Style	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Voltage	Panel Cutout Shape	Viewing Angle
APEM Q8P3BXXHG110E	IP67	6 mA	LED	Green	1900 mcd	Wire Leads - 7.87" (200.00mm)	T-1 3/4	5 mm	Green	AC	Diffused	Round with Domed Top	0.31 in	7.87 mm	110 V	Round	100 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Green Diffused 100° 110V 6mA Wire Leads - 7.87" (200.00mm)
