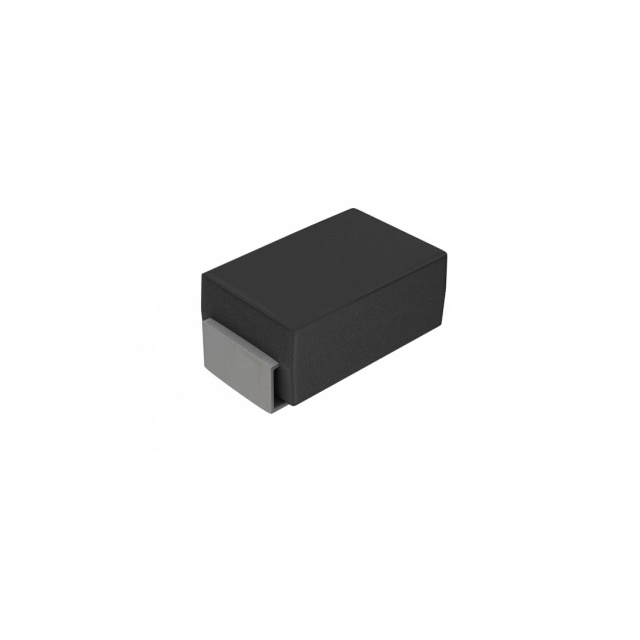

CLLR1U-01 TR TIN/LEAD
ObsoleteCentral Semiconductor Corp
DIODE GEN PURP 100V 1A MELF
Deep-Dive with AI
Search across all available documentation for this part.
CLLR1U-01 TR TIN/LEAD
ObsoleteCentral Semiconductor Corp
DIODE GEN PURP 100V 1A MELF
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CLLR1U-01 TR TIN/LEAD |
|---|---|
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -65 C |
| Package / Case | DO-213AB, MELF |
| Reverse Recovery Time (trr) | 50 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | MELF |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.53 | |
| 10 | $ 0.45 | |||
| 100 | $ 0.32 | |||
| 500 | $ 0.25 | |||
| Digi-Reel® | 1 | $ 0.53 | ||
| 10 | $ 0.45 | |||
| 100 | $ 0.32 | |||
| 500 | $ 0.25 | |||
| Tape & Reel (TR) | 4500 | $ 0.18 | ||
| 7500 | $ 0.17 | |||
| 10500 | $ 0.16 | |||
| 37500 | $ 0.15 | |||
Description
General part information
CLLR1 Series
Diode 100 V 1A Surface Mount MELF
