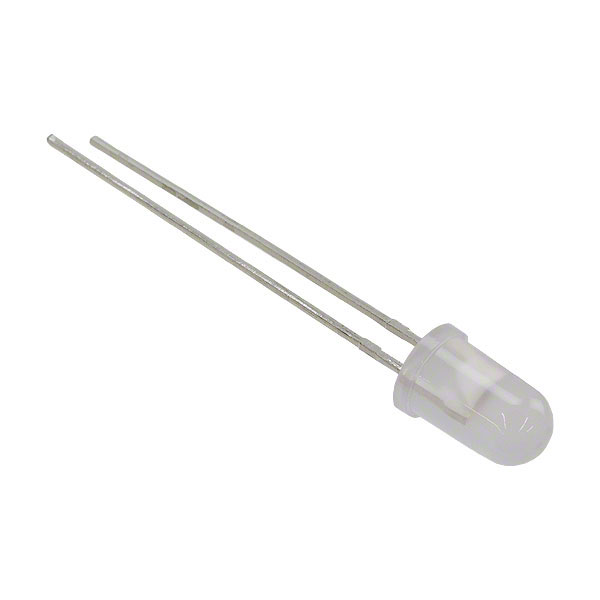

5219651F

Active

DIALIGHT

LED GREEN/RED DIFFUSED 5MM T/H

Search across all available documentation for this part.

Active

DIALIGHT

LED GREEN/RED DIFFUSED 5MM T/H

Technical Specifications

Parameters and characteristics for this part

Specification	5219651F

Color	Red, Green
Current - Test	20 mA, 20 mA
Height (Max) [Max] [z]	8.64 mm
Lens Color	White
Lens Size [diameter]	5 mm Dia
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating	40 mcd, 90 mcd
Mounting Type	Through Hole
Package / Case	Radial
Supplier Device Package	5 mm
Viewing Angle	60 °
Voltage - Forward (Vf) (Typ) [custom]	2.1 V
Voltage - Forward (Vf) (Typ) [custom]	1.8 V
Wavelength - Peak	565 nm, 660 nm

Part	Millicandela Rating	Mounting Type	Wavelength - Peak	Lens Size [diameter]	Height (Max) [Max] [z]	Lens Color	Viewing Angle	Color	Lens Style	Package / Case	Lens Transparency	Supplier Device Package	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Current - Test
DIALIGHT 5219651F	40 mcd 90 mcd	Through Hole	565 nm 660 nm	5 mm Dia	8.64 mm	White	60 °	Green Red	Round with Domed Top	Radial	Diffused	5 mm	2.1 V	1.8 V	20 mA 20 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green, Red LED Indication - Discrete 2.1V Green, 1.8V Red Radial
