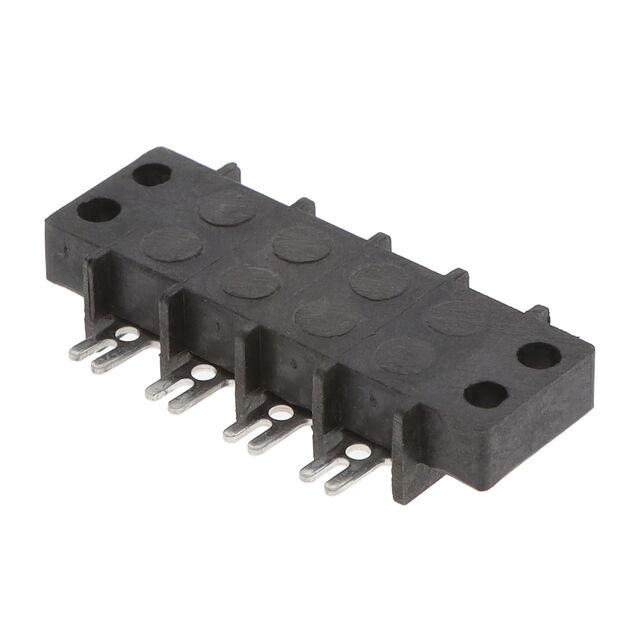

1504-ST

Active

Curtis Industries

CONN BARRIER STRIP 4CIRC 0.375"

Search across all available documentation for this part.

Active

Curtis Industries

CONN BARRIER STRIP 4CIRC 0.375"

Technical Specifications

Parameters and characteristics for this part

Specification	1504-ST

Barrier Type	2 Wall (Dual)
Bottom Termination	Closed
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	4
Number of Rows	2
Number of Wire Entries	8
Operating Temperature	110 °C
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Tin
Top Termination	Screws with Solder Lugs, Dual
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	10 AWG

Part	Barrier Type	Material Flammability Rating	Number of Rows	Bottom Termination	Pitch [x]	Pitch [x]	Current Rating (Amps)	Material - Insulation	Number of Circuits	Wire Gauge [Max]	Wire Gauge [Min]	Number of Wire Entries	Mounting Type	Top Termination	Terminal Block Type	Features	Operating Temperature	Terminal Screw Finish
Curtis Industries 1504-ST	2 Wall (Dual)	UL94 V-0	2	Closed	9.53 mm	0.375 in	20 A	Polyphenylene Oxide (PPO)	4	22 AWG	10 AWG	8	Chassis Panel	Screws with Solder Lugs Dual	Barrier Block	Flange	110 °C	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Solder Lugs, Dual
