VDV826-729

Active

Klein Tools, Inc.

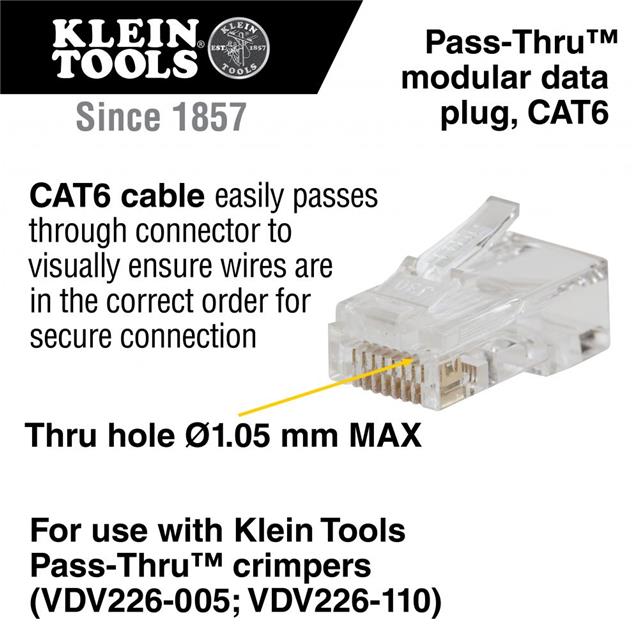

CONNECTOR RJ45 CAT6 10/PK

Search across all available documentation for this part.

Active

Klein Tools, Inc.

CONNECTOR RJ45 CAT6 10/PK

Technical Specifications

Parameters and characteristics for this part

Specification	VDV826-729

Cable Type	Round Cable, Solid, Stranded Wires
Color	Clear
Connector Type	Plug
Contact Finish	Gold
Housing Material	Polyvinyl Chloride (PVC)
Length	0.874 in
Length	22.2 mm
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat6
Shielding	Unshielded
Termination	IDC

Part	Connector Type	Housing Material	Ratings	Contact Finish	Number of Positions/Contacts	Cable Type	Color	Termination	Length	Length	Shielding	Contact Finish Thickness	Contact Finish Thickness	Terminal Type	Number of Wire Entries	Insulation	Features	Wire Gauge [Min]	Wire Gauge [Max]
Klein Tools, Inc. VDV826-729	Plug	Polyvinyl Chloride (PVC)	Cat6	Gold	8p8c (RJ45 Ethernet)	Round Cable Solid Stranded Wires	Clear	IDC	0.874 in	22.2 mm	Unshielded
Klein Tools, Inc. VDV826-762	Plug	Polyvinyl Chloride (PVC)		Gold		Round Cable Solid Stranded Wires	Clear					50 µin	1.27 µm
Klein Tools, Inc. VDV826-703	Plug	Polyvinyl Chloride (PVC)	Cat6	Gold	8p8c (RJ45 Ethernet)	Round Cable Solid Stranded Wires	Clear	IDC	0.874 in	22.2 mm	Unshielded
Klein Tools, Inc. VDV826-605							Red	IDC						Butt Splice Closed End Individual Openings	3	Fully Insulated	Gel Filled	19 AWG	26 AWG
Klein Tools, Inc. VDV826-628	Plug		Cat5e	Gold	8p8c (RJ45 Ethernet)	Round Cable Solid Stranded Wires	Clear	IDC			Unshielded	50 µin	1.27 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Unshielded Cat6 IDC
