A14086CH
ActiveHoffman Enclosures, Inc.

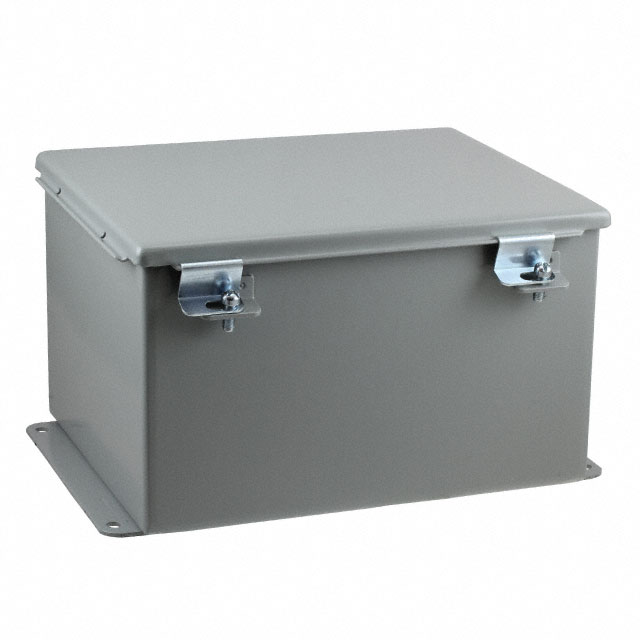

JUNCTION BOX STEEL 14"L X 8"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A14086CH
ActiveHoffman Enclosures, Inc.
JUNCTION BOX STEEL 14"L X 8"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A14086CH |
|---|---|
| Area (L x W) | 110 in˛ |
| Area (L x W) | 710 cm² |
| Color | Gray |
| Container Type | Junction Box |
| Design | Hinged Door, Lid |
| Features | Sealing Gasket |
| Height [z] | 5.984 in |
| Height [z] | 152 mm |
| Material | Metal, Steel |
| Ratings | IP65, 50E, NEMA 13, UL-50, NEMA 12 |
| Size / Dimension [x] | 356 mm |
| Size / Dimension [x] | 14.016 in |
| Size / Dimension [y] | 7.882 in |
| Size / Dimension [y] | 203 mm |
| Thickness | 14 Gauge |
| Weight | 13 lbs |
| Weight | 5.9 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 202.43 | |
| 5 | $ 172.98 | |||
| 10 | $ 172.38 | |||
Description
General part information
A14086 Series
Junction Box Metal, Steel Gray Hinged Door, Lid 14.016" L x 7.882" W (356.00mm x 203.00mm) X 5.984" (152.00mm)
