0003091094
ActiveMolex

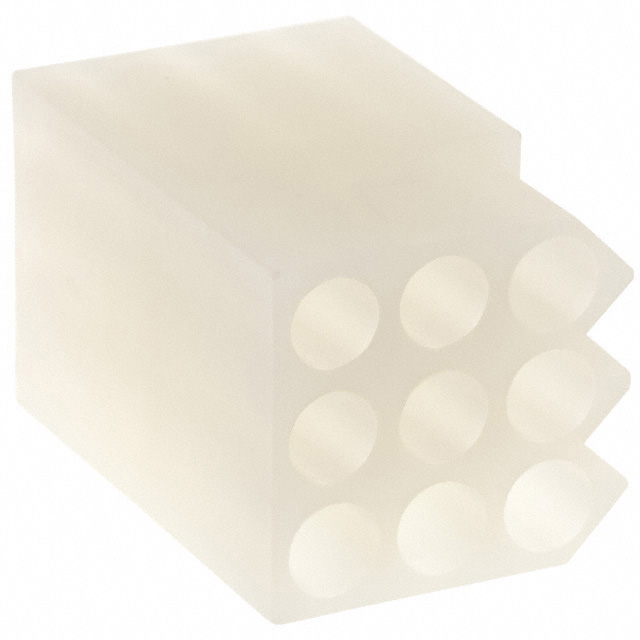

CONN RCPT HSG 9POS 5.03MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0003091094
ActiveMolex
CONN RCPT HSG 9POS 5.03MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0003091094 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male or Female |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 9 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.198 in |
| Pitch [x] | 5.03 mm |
| Row Spacing | 0.198 in |
| Row Spacing | 5.03 mm |
000309 Series
| Part | Insulation Material | Number of Rows | Mounting Type | Note | Pitch [x] | Pitch [x] | Connector Type | Contact Type | Contact Termination | Color | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Fastening Type | Row Spacing | Row Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Polyamide (PA66) Nylon 6/6 | 1 | Free Hanging (In-Line) | Contacts Not Included | 0.198 in | 5.03 mm | Receptacle | Male or Female | Crimp | Natural | 105 ░C | -55 °C | 4 | Locking Ramp | ||
Molex | Polyamide (PA66) Nylon 6/6 | 2 | Free Hanging (In-Line) | Contacts Not Included | 0.198 in | 5.03 mm | Receptacle | Male or Female | Crimp | Natural | 105 ░C | -40 °C | 4 | Locking Ramp | 0.198 in | 5.03 mm |
Molex | Polyamide (PA66) Nylon 6/6 | 3 | Free Hanging (In-Line) | Contacts Not Included | 0.198 in | 5.03 mm | Receptacle | Male or Female | Crimp | Natural | 105 ░C | -40 °C | 6 | Locking Ramp | 0.198 in | 5.03 mm |
Molex | 1 | Free Hanging (In-Line) | Contacts Not Included | 0.198 in | 5.03 mm | Receptacle | Female Socket | Crimp | Natural | Latch Lock | ||||||
Molex | Polyamide (PA66) Nylon 6/6 | 3 | Free Hanging (In-Line) | Contacts Not Included | 0.198 in | 5.03 mm | Receptacle | Male or Female | Crimp | Natural | 105 ░C | -40 °C | 9 | Locking Ramp | 0.198 in | 5.03 mm |
Molex | 3 | Panel Mount Snap-In | Contacts Not Included | 0.198 in | 5.03 mm | Plug | Male or Female | Crimp | Natural | 9 | Detent Lock | 0.198 in | 5.03 mm | |||
Molex | Polyamide (PA66) Nylon 6/6 | 3 | Panel Mount Snap-In | Contacts Not Included | 0.198 in | 5.03 mm | Plug | Male or Female | Crimp | Natural | 105 ░C | -40 °C | 12 | Detent Lock | 0.198 in | 5.03 mm |
Molex | Polyamide (PA66) Nylon 6/6 | 2 | Free Hanging (In-Line) | Contacts Not Included | 0.198 in | 5.03 mm | Receptacle | Male or Female | Crimp | Natural | 105 ░C | -55 °C | 6 | 0.198 in | 5.03 mm | |
Molex | 3 | Panel Mount Snap-In | Contacts Not Included | 0.198 in | 5.03 mm | Receptacle | Male or Female | Crimp | Natural | 15 | Locking Ramp | 0.198 in | 5.03 mm | |||
Molex | Polyamide (PA66) Nylon 6/6 | 1 | Free Hanging (In-Line) | Contacts Not Included | 0.198 in | 5.03 mm | Receptacle | Male or Female | Crimp | Natural | 105 ░C | -40 °C | Detent Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.54 | |
| 10 | $ 0.46 | |||
| 100 | $ 0.36 | |||
| 2000 | $ 0.27 | |||
| 4000 | $ 0.26 | |||
Description
General part information
000309 Series
9 Rectangular Connectors - Housings Receptacle Natural 0.198" (5.03mm)
