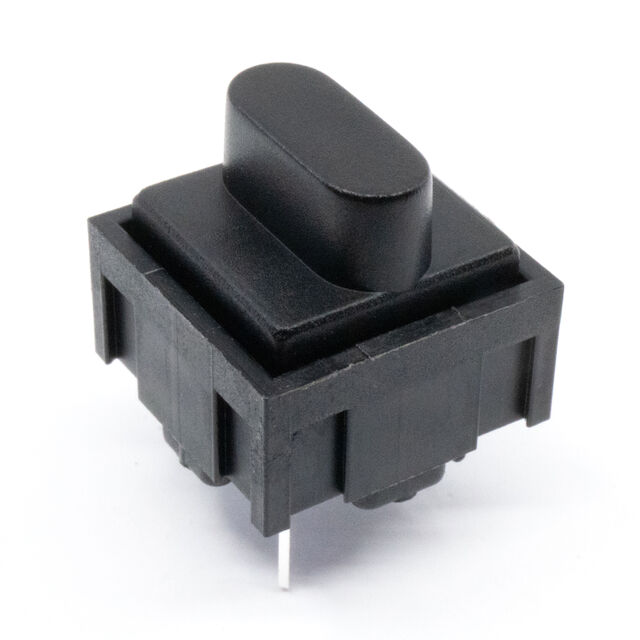

320.04E11BLKVERT
ActiveE-Switch
SWITCH TACT SPST-NO 0.025A 50V
Deep-Dive with AI
Search across all available documentation for this part.
320.04E11BLKVERT
ActiveE-Switch
SWITCH TACT SPST-NO 0.025A 50V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 320.04E11BLKVERT |
|---|---|
| Actuator Height off PCB, Vertical | 12.7 mm |
| Actuator Material | Polycarbonate (PC) |
| Actuator Orientation | Top Actuated |
| Actuator Type | Rectangular Button |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.025 A, 50 VDC |
| Features | Black Cap |
| Illumination | Non-Illuminated |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 135 gf |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline [x] | 12.4 mm |
| Outline [y] | 12.4 mm |
| Switch Function | Off-Mom |
| Switch Travel [custom] | 0.6 mm |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.17 | |
| 10 | $ 2.11 | |||
| 25 | $ 1.92 | |||
| 162 | $ 1.67 | |||
| 324 | $ 1.51 | |||
| 648 | $ 1.41 | |||
| 1134 | $ 1.30 | |||
| 2592 | $ 1.18 | |||
| 5022 | $ 1.09 | |||
Description
General part information
320.04 Series
Tactile Switch SPST-NO Top Actuated Through Hole
