306-037-500-178

Active

EDAC Inc.

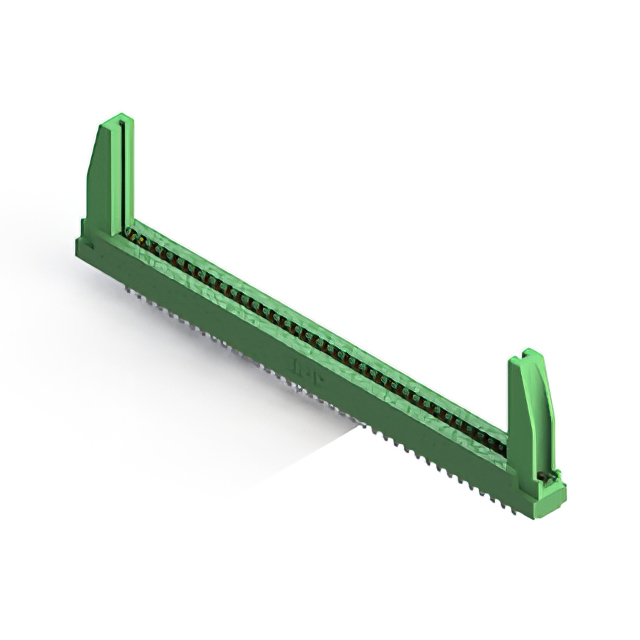

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 37 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

306-037-500-178

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 37 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	306-037-500-178

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Number of Positions	74
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1

306-037 Series

Part	Contact Type	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Color	Number of Rows	Termination	Flange Feature	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Features	Contact Material	Gender	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Material - Insulation	Termination Rows	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 306-037-521-178	Cantilever	Dual	-40 °C	105 ░C	Gold	37	37	37	Green	2	Solder	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides	Copper Alloy	Female	0.156 in	3.96 mm	74	10 Áin	0.25 Ám	Panel Mount Through Hole	Polyester Thermoplastic	1
EDAC Inc. 306-037-500-168	Cantilever	Dual	-40 °C	105 ░C	Gold	37	37	37	Green	2	Solder Eyelet(s)	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides	Copper Alloy	Female	0.156 in	3.96 mm	74	10 Áin	0.25 Ám		Polyester Thermoplastic	1
EDAC Inc. 306-037-521-112	Cantilever	Dual	-40 °C	105 ░C	Gold	37	37	37	Green	2	Solder	Flush Mount Side Opening Unthreaded	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		Copper Alloy	Female	0.156 in	3.96 mm	74	10 Áin	0.25 Ám	Panel Mount Through Hole	Polyester Thermoplastic	1	3.25 mm	0.128 "
EDAC Inc. 306-037-400-102	Cantilever	Dual	-40 °C	105 ░C	Tin	37	37	37	Green	2	Solder Eyelet(s)	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		Copper Alloy	Female	0.156 in	3.96 mm	74				Polyester Thermoplastic	1	3.25 mm	0.128 "
EDAC Inc. 306-037-521-107	Cantilever	Dual	-40 °C	105 ░C	Gold	37	37	37	Green	2	Solder	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		Copper Alloy	Female	0.156 in	3.96 mm	74	10 Áin	0.25 Ám	Panel Mount Through Hole	Polyester Thermoplastic	1
EDAC Inc. 306-037-421-102	Cantilever	Dual	-40 °C	105 ░C	Tin	37	37	37	Green	2	Solder	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		Copper Alloy	Female	0.156 in	3.96 mm	74			Panel Mount Through Hole	Polyester Thermoplastic	1	3.25 mm	0.128 "
EDAC Inc. 306-037-520-178	Cantilever	Dual	-40 °C	105 ░C	Gold	37	37	37	Green	2	Solder	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides	Copper Alloy	Female	0.156 in	3.96 mm	74	10 Áin	0.25 Ám	Panel Mount Through Hole	Polyester Thermoplastic	1
EDAC Inc. 306-037-500-107	Cantilever	Dual	-40 °C	105 ░C	Gold	37	37	37	Green	2	Solder Eyelet(s)	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		Copper Alloy	Female	0.156 in	3.96 mm	74	10 Áin	0.25 Ám		Polyester Thermoplastic	1
EDAC Inc. 306-037-520-101	Cantilever	Dual	-40 °C	105 ░C	Gold	37	37	37	Green	2	Solder		Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		Copper Alloy	Female	0.156 in	3.96 mm	74	10 Áin	0.25 Ám	Through Hole	Polyester Thermoplastic	1
EDAC Inc. 306-037-500-178	Cantilever	Dual	-40 °C	105 ░C	Gold	37	37	37	Green	2	Solder Eyelet(s)	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Card Guides	Copper Alloy	Female	0.156 in	3.96 mm	74	10 Áin	0.25 Ám		Polyester Thermoplastic	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 22.98
Newark	Each	1	$ 25.67
		100	$ 15.80
		250	$ 13.20
		500	$ 11.85
		1000	$ 10.09

Description

General part information

306-037 Series

74 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
