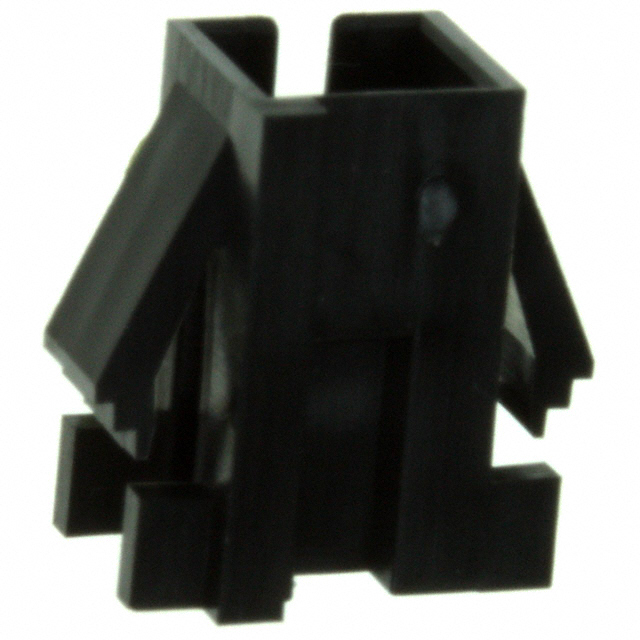

DF3AA-2EP-2C

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 2POS 2.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DF3AA-2EP-2C Spec

DF3AA-2EP-2C

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 2POS 2.00MM

Deep-Dive with AI

DocumentsDatasheet DF3AA-2EP-2C Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF3AA-2EP-2C

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm

DF3A Series

Part	Termination	Number of Positions Loaded	Mounting Type	Number of Rows	Contact Finish - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Connector Type	Material Flammability Rating	Style	Contact Type	Fastening Type	Insulation Color	Number of Positions	Insulation Material	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length [x]	Overall Contact Length [x]	Mated Stacking Heights	Color	Note	Contact Termination	Pitch [x]	Pitch [x]
Hirose Electric USA, Inc. DF3A-6P-2DS	Press-Fit Solder	All	Through Hole Right Angle	1	Tin	0.122 in	3.1 mm	Square	105 ░C	-55 °C	3 A	Header	UL94 V-0	Board to Board Cable	Male Pin	Push-Pull	Black	6	Nylon Polyamide (PA)	0.197 in	5 mm	0.114 in	2.9 mm	0.079 in	2 mm	Brass	Shrouded - 4 Wall
Hirose Electric USA, Inc. DF3A-8P-2DSA	Press-Fit Solder	All	Through Hole	1	Tin	0.122 in	3.1 mm	Square	105 ░C	-55 °C	3 A	Header	UL94 V-0	Board to Board Cable	Male Pin	Push-Pull	Black	8	Nylon Polyamide (PA)	0.197 in	5 mm	0.114 in	2.9 mm	0.079 in	2 mm	Brass	Shrouded - 4 Wall	1 µm	39.4 µin	0.299 in	7.6 mm	5 mm
Hirose Electric USA, Inc. DF3A-7P-2DS(10)
Hirose Electric USA, Inc. DF3A-13P-2DSA	Press-Fit Solder	All	Through Hole	1	Tin	0.122 in	3.1 mm	Square	105 ░C	-55 °C	3 A	Header	UL94 V-0	Board to Board Cable	Male Pin	Push-Pull	Black	13	Nylon Polyamide (PA)	0.197 in	5 mm	0.114 in	2.9 mm	0.079 in	2 mm	Brass	Shrouded - 4 Wall	1 µm	39.4 µin	0.299 in	7.6 mm	5 mm
Hirose Electric USA, Inc. DF3AA-2EP-2C			Panel Mount Snap-In	1					105 ░C	-55 °C		Plug			Male Pin			2	Nylon Polyamide (PA)														Black	Contacts Not Included	Crimp	0.079 in	2 mm
Hirose Electric USA, Inc. DF3A-2P-2DS(10)
Hirose Electric USA, Inc. DF3A-9P-2DSA	Press-Fit Solder	All	Through Hole	1	Tin	0.122 in	3.1 mm	Square	105 ░C	-55 °C	3 A	Header	UL94 V-0	Board to Board Cable	Male Pin	Push-Pull	Black	9	Nylon Polyamide (PA)	0.197 in	5 mm	0.114 in	2.9 mm	0.079 in	2 mm	Brass	Shrouded - 4 Wall	1 µm	39.4 µin	0.299 in	7.6 mm	5 mm
Hirose Electric USA, Inc. DF3A-6P-2DS(10)
Hirose Electric USA, Inc. DF3A-3P-2DS(10)	Press-Fit Solder	All	Through Hole Right Angle	1	Tin	0.122 in	3.1 mm	Square	105 ░C	-55 °C	3 A	Header	UL94 V-0	Board to Board Cable	Male Pin	Push-Pull	White		Nylon Polyamide (PA)	0.197 in	5 mm	0.114 in	2.9 mm	0.079 in	2 mm	Brass	Shrouded - 4 Wall
Hirose Electric USA, Inc. DF3A-5P-2DSA(14)	Press-Fit Solder	All	Through Hole	1	Tin	0.122 in	3.1 mm	Square	105 ░C	-55 °C	3 A	Header	UL94 V-0	Board to Board Cable	Male Pin	Push-Pull	Yellow		Nylon Polyamide (PA)	0.197 in	5 mm	0.114 in	2.9 mm	0.079 in	2 mm	Brass	Shrouded - 4 Wall	1 µm	39.4 µin	0.299 in	7.6 mm	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.34
		10	$ 0.26
		25	$ 0.23
		50	$ 0.21
		100	$ 0.20
		250	$ 0.18
		500	$ 0.16
		1000	$ 0.15
		2500	$ 0.14

Description

General part information

DF3A Series

2 Rectangular Connectors - Housings Plug Black 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

DF3AA-2EP-2C Spec

Datasheet
