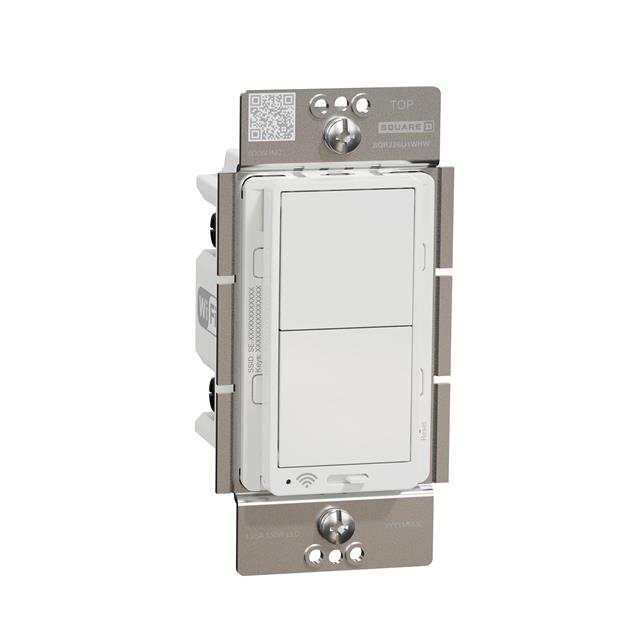

SQR226U1WHW
ActiveSQUARE D BY SCHNEIDER ELECTRIC
SWITCH ROCKER SP3T 15A 120V
Deep-Dive with AI
Search across all available documentation for this part.
SQR226U1WHW
ActiveSQUARE D BY SCHNEIDER ELECTRIC
SWITCH ROCKER SP3T 15A 120V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SQR226U1WHW |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flat |
| Circuit | SP3T |
| Color - Actuator/Cap | White |
| Current Rating (Amps) | 15 A |
| Mounting Type | Panel Mount, Flange |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 120 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 44.41 | |
| 10 | $ 42.09 | |||
| 25 | $ 39.68 | |||
| 50 | $ 37.94 | |||
| 100 | $ 36.28 | |||
| 250 | $ 34.18 | |||
Description
General part information
SQR226U Series
Rocker Switch SP3T 15A (AC) 120 V Panel Mount, Flange
