ANM-I-2A

Active

OptiFuse

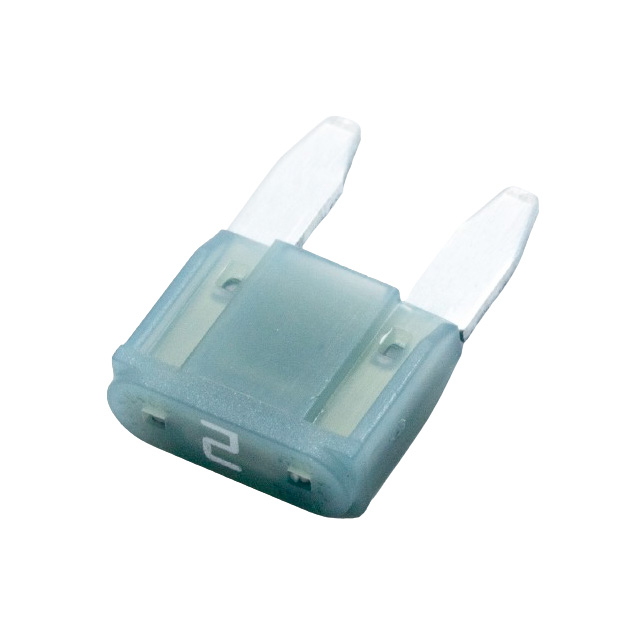

FUSE AUTOMOTIVE 2A 32VDC BLADE

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTOMOTIVE 2A 32VDC BLADE

Technical Specifications

Parameters and characteristics for this part

Specification	ANM-I-2A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Gray
Current Rating (Amps)	2 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Miniature
Response Time	Fast Blow
Size / Dimension [x]	0.429 "
Size / Dimension [x]	10.9 mm
Size / Dimension [y]	0.15 "
Size / Dimension [y]	3.8 mm
Size / Dimension [z]	9.2 mm
Size / Dimension [z]	0.362 in
Voltage Rating - DC	32 V

Part	Response Time	Mounting Type	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current Rating (Amps)	Fuse Type	Package / Case	Breaking Capacity @ Rated Voltage	Voltage Rating - DC	Color
OptiFuse ANM-I-2A	Fast Blow	Requires Holder	ISO SAE	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	2 A	Automotive	Blade Miniature	1 kA	32 V	Gray
OptiFuse ANM-I-7.5A	Fast Blow	Requires Holder	ISO SAE	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	7.5 A	Automotive	Blade Miniature	1 kA	32 V	Brown
OptiFuse ANM-I-10A	Fast Blow	Requires Holder	ISO SAE	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	10 A	Automotive	Blade Miniature	1 kA	32 V	Red
OptiFuse ANM-I-3A	Fast Blow	Requires Holder	ISO SAE	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	3 A	Automotive	Blade Miniature	1 kA	32 V	Violet
OptiFuse ANM-I-20A	Fast Blow	Requires Holder	ISO SAE	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	20 A	Automotive	Blade Miniature	1 kA	32 V	Yellow
OptiFuse ANM-I-5A	Fast Blow	Requires Holder	ISO SAE	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	5 A	Automotive	Blade Miniature	1 kA	32 V	Tan
OptiFuse ANM-I-30A	Fast Blow	Requires Holder	ISO SAE	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	30 A	Automotive	Blade Miniature	1 kA	32 V	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.13

General part information

2 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature
