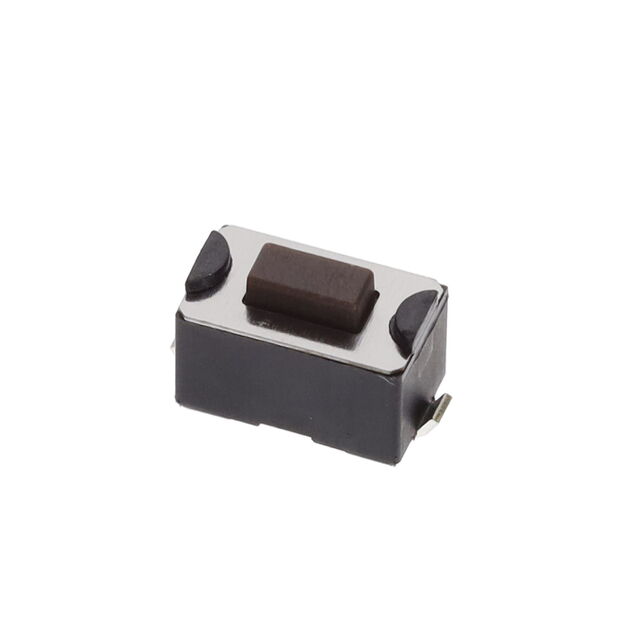

ADTSM31NVTR

Active

APEM

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

APEM

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	ADTSM31NVTR

Actuator Height off PCB, Vertical [z]	4.3 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated
Actuator Type	Rectangular Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Tactile Feedback
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	6 mm
Outline [y]	3.5 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	J Lead

Part	Actuator Height off PCB, Vertical	Mounting Type	Actuator Material	Switch Travel	Operating Force	Termination Style	Circuit	Outline [y]	Outline [x]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Actuator Type	Switch Function	Illumination	Actuator Orientation	Actuator Height off PCB, Vertical [z]
APEM ADTSM32SVTR	5 mm	Surface Mount	Nylon Polyamide (PA)	0.25 mm	320 gf	J Lead	SPST-NO	3.5 mm	6 mm	Tactile Feedback	70 °C	-25 °C	0.05 A 12 VDC	Rectangular Button	Off-Mom	Non-Illuminated	Top Actuated
APEM ADTSM31NVTR		Surface Mount	Nylon Polyamide (PA)	0.25 mm		J Lead	SPST-NO	3.5 mm	6 mm	Tactile Feedback	70 °C	-25 °C	0.05 A 12 VDC	Rectangular Button	Off-Mom	Non-Illuminated	Top Actuated	4.3 mm
APEM ADTSM32NVTR	5 mm	Surface Mount	Nylon Polyamide (PA)	0.25 mm		J Lead	SPST-NO	3.5 mm	6 mm	Tactile Feedback	70 °C	-25 °C	0.05 A 12 VDC	Rectangular Button	Off-Mom	Non-Illuminated	Top Actuated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
