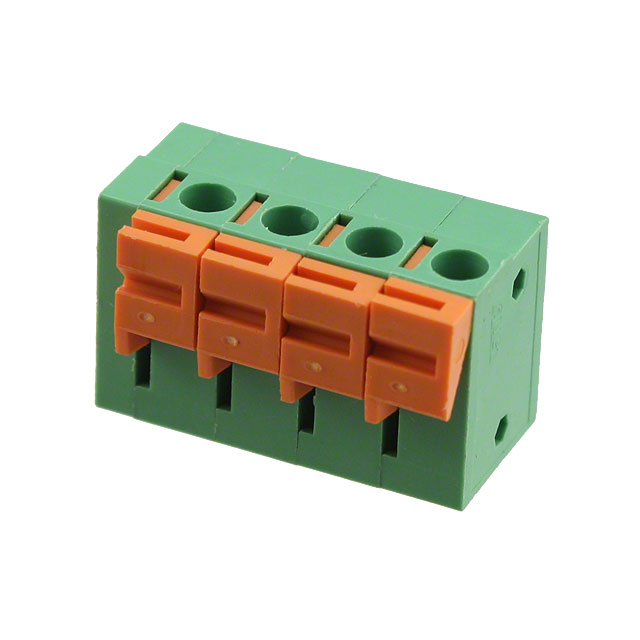

HA0401500000G

Active

Amphenol Anytek

TERM BLK 4P SIDE ENT 5.08MM PCB

Search across all available documentation for this part.

Active

Amphenol Anytek

TERM BLK 4P SIDE ENT 5.08MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	HA0401500000G

Clamp Material - Plating	Stainless, Steel
Color	Green
Contact Material - Plating	Copper Alloy - Tin Plated
Current	10 A
Features	Lever Actuated
Housing Material	Thermoplastic
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	4
Voltage	300 V
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	14 AWG
Wire Termination	Push-In Spring, Screwless - Leg Spring

Part	Color	Mounting Type	Contact Material - Plating	Positions Per Level	Features	Pitch [x]	Pitch [x]	Wire Termination	Clamp Material - Plating	Mating Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Housing Material	Current	Wire Gauge [Min]	Wire Gauge [Max]	Voltage	Contact Material - Plating [custom]
Amphenol Anytek HA0401500000G	Green	Through Hole	Copper Alloy - Tin Plated	4	Lever Actuated	0.2 in	5.08 mm	Push-In Spring Screwless - Leg Spring	Stainless Steel	Horizontal with Board	-40 °C	115 °C	1	Thermoplastic	10 A	14 AWG	24 AWG	300 V
Amphenol Anytek HA0460500000G	Green	Through Hole		4	Lever Actuated	0.295 in	7.5 mm	Push-In Spring Screwless - Leg Spring	Stainless Steel	Vertical with Board	-40 °C	115 °C	1	Thermoplastic	10 A	14 AWG	24 AWG	300 V	Brass - Tin Plated
Amphenol Anytek HA0470500000G	Green	Through Hole	Copper Alloy - Tin Plated	4	Lever Actuated	0.15 in	3.81 mm	Push-In Spring Screwless - Leg Spring	Stainless Steel	Vertical with Board	-40 °C	115 °C	1	Thermoplastic	6 A	16 AWG	26 AWG	300 V
Amphenol Anytek HA0471500000G	Green	Through Hole	Copper Alloy - Tin Plated	4	Lever Actuated	0.15 in	3.81 mm	Push-In Spring Screwless - Leg Spring	Stainless Steel	Horizontal with Board	-40 °C	115 °C	1	Thermoplastic	6 A	16 AWG	26 AWG	300 V
Amphenol Anytek HA0451500000G	Green	Through Hole		4	Lever Actuated	0.1 in	2.54 mm	Push-In Spring Screwless - Leg Spring	Stainless Steel	Horizontal with Board	-40 °C	115 °C	1	Thermoplastic	2 A	20 AWG	26 AWG	150 V	Brass - Tin Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
