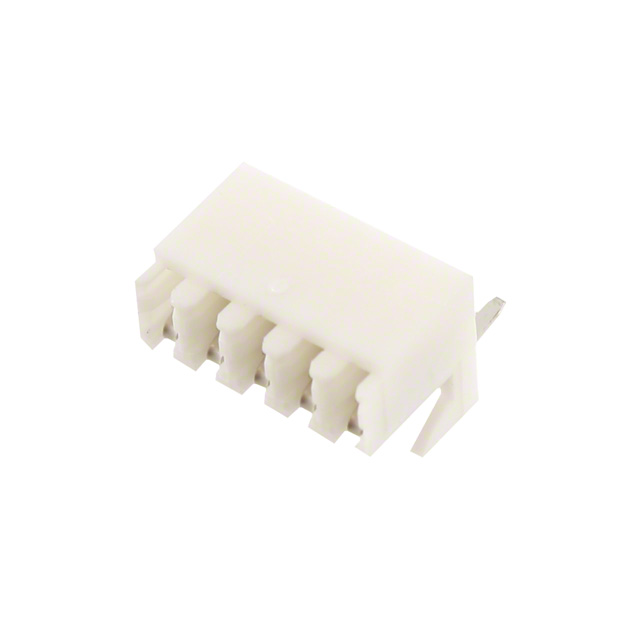

0022173052

Active

Molex

CONN RCPT 5POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0022173052

Active

Molex

CONN RCPT 5POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022173052

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Receptacle, Bottom Entry
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Post	3.35 mm
Contact Length - Post	0.132 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Non-Gendered
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Features	Board Hooks
Insulation Color	White
Insulation Height	0.311 in
Insulation Height	7.9 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

002217 Series

Part	Number of Positions	Style	Contact Finish - Post	Number of Rows	Contact Material	Connector Type	Insulation Material	Insulation Color	Contact Shape	Material Flammability Rating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Termination	Fastening Type	Contact Finish - Mating	Voltage Rating	Mounting Type	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Insulation Height	Insulation Height	Features	Current Rating (Amps)
Molex 0022172192	19	Board to Board Cable	Gold	1	Brass	Receptacle Bottom Entry	Nylon Polyamide (PA)	White	Square	UL94 V-0	All	-40 °C	80 C	Automotive General Purpose Medical Telecommunications	2 µin	0.051 µm	3.35 mm	0.132 in	Solder	Push-Pull	Gold	250 VAC	Through Hole	Non-Gendered	0.51 µm	20 µin	0.1 in	2.54 mm	2.5 A	0.311 in	7.9 mm	Board Hooks
Molex 0022172132	13	Board to Board Cable	Gold	1	Brass	Receptacle Bottom Entry	Nylon Polyamide (PA)	White	Square	UL94 V-0	All	-40 °C	80 C	Automotive General Purpose Medical Telecommunications	2 µin	0.051 µm	3.35 mm	0.132 in	Solder	Push-Pull	Gold	250 VAC	Through Hole	Non-Gendered	0.51 µm	20 µin	0.1 in	2.54 mm	2.5 A	0.311 in	7.9 mm	Board Hooks
Molex 0022172082	8	Board to Board Cable	Gold	1	Brass	Receptacle Bottom Entry	Nylon Polyamide (PA)	White	Square	UL94 V-0	All	-40 °C	80 C	Automotive General Purpose Medical Telecommunications	2 µin	0.051 µm	3.35 mm	0.132 in	Solder	Push-Pull	Gold	250 VAC	Through Hole	Non-Gendered	0.51 µm	20 µin	0.1 in	2.54 mm	2.5 A	0.311 in	7.9 mm	Board Hooks
Molex 0022173087	8	Board to Board Cable	Tin	1	Phosphor Bronze	Receptacle Bottom Entry	Nylon Polyamide (PA)	White	Square	UL94 V-0	All	-40 °C	105 ░C	Automotive General Purpose Medical Telecommunications	100 µin	2.54 µm			Solder	Push-Pull	Gold	250 VAC	Through Hole	Non-Gendered	0.76 Ám	30 Áin	0.1 in	2.54 mm	4 A	0.311 in	7.9 mm	Board Hooks
Molex 0022172144	14	Board to Board Cable	Tin	1	Brass	Receptacle Bottom Entry	Nylon Polyamide (PA)	White	Square	UL94 V-0	All	-40 °C	80 C	Automotive General Purpose Medical Telecommunications	100 µin	2.54 µm	3.35 mm	0.132 in	Solder	Push-Pull	Gold	250 VAC	Through Hole	Non-Gendered	0.76 Ám	30 Áin	0.1 in	2.54 mm	2.5 A	0.311 in	7.9 mm	Board Hooks
Molex 0022173052		Board to Board Cable	Tin	1	Brass	Receptacle Bottom Entry	Nylon Polyamide (PA)	White	Square	UL94 V-0	All	-40 °C	80 C	Automotive General Purpose Medical Telecommunications	50 µin	1.27 µm	3.35 mm	0.132 in	Solder	Push-Pull	Gold	250 VAC	Through Hole	Non-Gendered	0.38 µm	15 µin	0.1 in	2.54 mm	2.5 A	0.311 in	7.9 mm	Board Hooks
Molex 0022173196	19	Board to Board Cable	Tin	1	Brass	Receptacle Bottom Entry	Nylon Polyamide (PA)	White	Square	UL94 V-0	All	-40 °C	80 C	Automotive General Purpose Medical Telecommunications	100 µin	2.54 µm	3.35 mm	0.132 in	Solder	Push-Pull	Gold	250 VAC	Through Hole	Non-Gendered	0.76 Ám	30 Áin	0.1 in	2.54 mm	2.5 A	0.311 in	7.9 mm	Board Hooks
Molex 0022173062	6	Board to Board Cable	Tin	1	Brass	Receptacle Bottom Entry	Nylon Polyamide (PA)	White	Square	UL94 V-0	All	-40 °C	80 C	Automotive General Purpose Medical Telecommunications	50 µin	1.27 µm	3.35 mm	0.132 in	Solder	Push-Pull	Gold	250 VAC	Through Hole	Non-Gendered	0.38 µm	15 µin	0.1 in	2.54 mm	2.5 A	0.311 in	7.9 mm	Board Hooks
Molex 0022172094	9	Board to Board Cable	Tin	1	Brass	Receptacle Bottom Entry	Nylon Polyamide (PA)	White	Square	UL94 V-0	All	-40 °C	80 C	Automotive General Purpose Medical Telecommunications	100 µin	2.54 µm	3.35 mm	0.132 in	Solder	Push-Pull	Gold	250 VAC	Through Hole	Non-Gendered	0.76 Ám	30 Áin	0.1 in	2.54 mm	2.5 A	0.311 in	7.9 mm	Board Hooks
Molex 0022172147	14		Tin	1	Phosphor Bronze	Receptacle Bottom Entry	Nylon Polyamide (PA)	White	Square	UL94 V-0	All				100 µin	2.54 µm			Solder	Push-Pull	Gold	500 V	Through Hole Right Angle	Female Socket	0.76 Ám	30 Áin	0.1 in	2.54 mm		0.305 in	7.75 mm		Varies by Wire Gauge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.93
		10	$ 0.69
		80	$ 0.55
		440	$ 0.46
		945	$ 0.43
		4900	$ 0.38
		10000	$ 0.36

Description

General part information

002217 Series

5 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources
