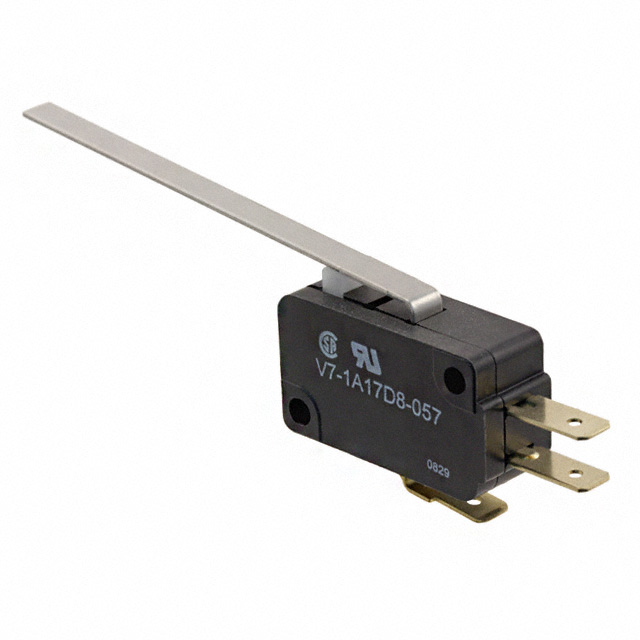

V7-1A17D8-057

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Release Force	Actuator Type	Termination Style	Voltage Rating - AC	Operating Force	Mechanical Life	Mounting Type	Pretravel	Pretravel	Differential Travel	Differential Travel	Circuit	Overtravel	Overtravel	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Operating Position	Operating Position	Current Rating (Amps)	Switch Function
Honeywell Sensing and Productivity Solutions V7-1A17P02	25 gf	Round (Pin Plunger)	PC Pin	125 V	150 gf	10000000 Cycles	Through Hole Right Angle	0.047 in	1.2 mm	0.25 mm	0.01 in	SPDT	1.27 mm	0.05 in	85 °C	-40 °C	100000 Cycles	0.579 in	14.7 mm	5 A	On-Mom
Honeywell Sensing and Productivity Solutions V7-1A17D8-057	3 gf	Lever Straight	Quick Connect - 0.187" (4.7mm)	125 V	38 gf	10000000 Cycles	Chassis Mount	0.3 in	7.6 mm	1.8 mm	0.07 in	SPDT	3.7 mm	0.146 "	85 °C	-40 °C	100000 Cycles	0.602 "	15.3 mm	5 A	On-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.75

General part information

Switch SPDT Chassis Mount
