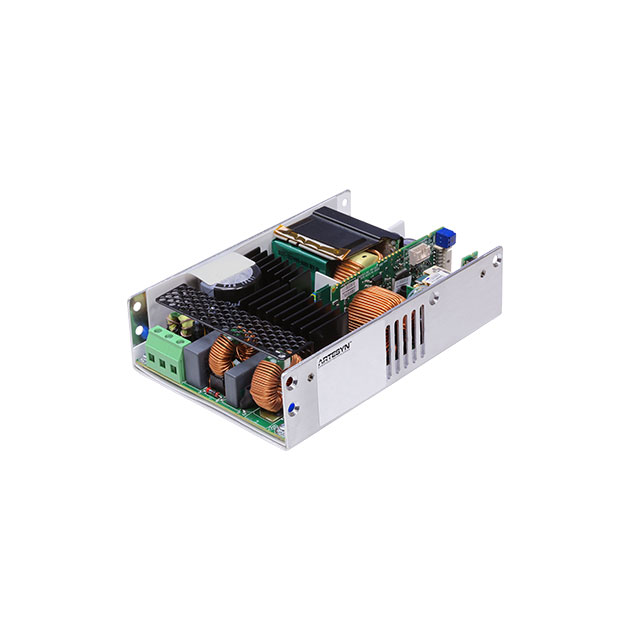

CNS655-MU

Active

ARTESYN / Advanced Energy

AC/DC CONVERTER 24V 400W

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

AC/DC CONVERTER 24V 400W

Technical Specifications

Parameters and characteristics for this part

Specification	CNS655-MU

Applications	ITE (Commercial), Medical
Approval Agency	CE
Current - Output 1	16.7 A
Features	PMBus™ Interface, PFC, Standby Output, Universal Input, Remote On/Off, Adjustable Output, Remote Sense, Load Sharing
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-20 °C
Power (Watts)	650 W, 400 W
Size / Dimension [x]	152.4 mm
Size / Dimension [x]	6 in
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm
Size / Dimension [z]	1.54 "
Size / Dimension [z]	39.2 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

Part	Mounting Type	Applications	Voltage - Isolation	Approval Agency	Features	Number of Outputs	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Type	Minimum Load Required	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1
ARTESYN / Advanced Energy CNS655-MU	Chassis Mount	ITE (Commercial) Medical	4000 V	CE	Adjustable Output Load Sharing PFC PMBus™ Interface Remote On/Off Remote Sense Standby Output Universal Input	1	400 W 650 W	90 VAC	264 VAC	24 V	Open Frame		1.54 "	39.2 mm	152.4 mm	6 in	4 "	101.6 mm	-20 °C	80 ¯C	16.7 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
