857-10-016-30-002000

Active

Mill-Max Manufacturing Corp.

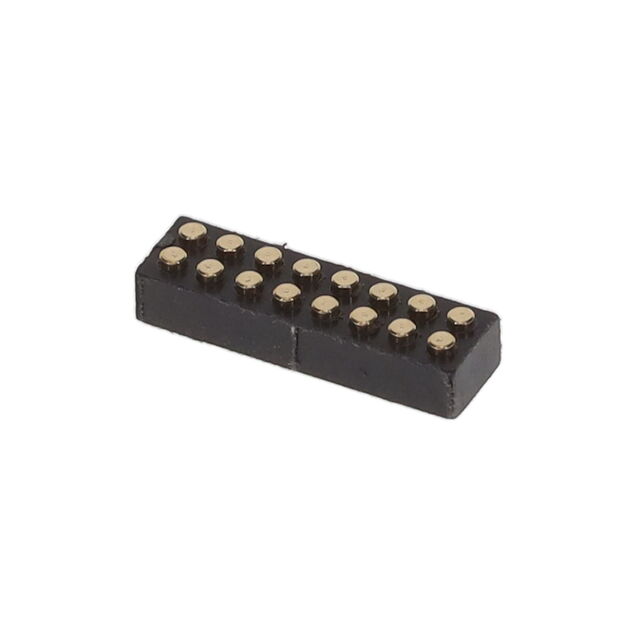

CONN SPRING TARGET 16POS SMD

Deep-Dive with AI

Search across all available documentation for this part.

857-10-016-30-002000

Active

Mill-Max Manufacturing Corp.

CONN SPRING TARGET 16POS SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-10-016-30-002000

Connector Type	Mating Target
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Material	Brass Alloy
Mounting Type	Surface Mount
Number of Contacts	16
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Row Spacing	1.27 mm
Row Spacing	0.05 in

857-10 Series

Part	Row Spacing	Row Spacing	Connector Type	Pitch [x]	Pitch [x]	Number of Contacts	Number of Rows	Contact Finish	Material	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Contacts [custom]
Mill-Max Manufacturing Corp. 857-10-008-10-051000	1.27 mm	0.05 in	Mating Target	0.05 in	1.27 mm	8	2	Gold	Brass Alloy	Through Hole	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 857-10-038-30-002000	1.27 mm	0.05 in	Mating Target	0.05 in	1.27 mm	38	2	Gold	Brass Alloy	Surface Mount	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 857-10-034-10-002000	1.27 mm	0.05 in	Mating Target	0.05 in	1.27 mm		2	Gold	Brass Alloy	Through Hole	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 857-10-040-30-051000	1.27 mm	0.05 in	Mating Target	0.05 in	1.27 mm	40	2	Gold	Brass Alloy	Surface Mount	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 857-10-006-10-051000	1.27 mm	0.05 in	Mating Target	0.05 in	1.27 mm		2	Gold	Brass Alloy	Through Hole	10 Áin	0.25 Ám	6
Mill-Max Manufacturing Corp. 857-10-024-30-051000	1.27 mm	0.05 in	Mating Target	0.05 in	1.27 mm	24	2	Gold	Brass Alloy	Surface Mount	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 857-10-006-30-051000	1.27 mm	0.05 in	Mating Target	0.05 in	1.27 mm		2	Gold	Brass Alloy	Surface Mount	10 Áin	0.25 Ám	6
Mill-Max Manufacturing Corp. 857-10-016-30-002000	1.27 mm	0.05 in	Mating Target	0.05 in	1.27 mm	16	2	Gold	Brass Alloy	Surface Mount	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 857-10-026-10-051000	1.27 mm	0.05 in	Mating Target	0.05 in	1.27 mm	26	2	Gold	Brass Alloy	Through Hole	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 857-10-038-30-051000	1.27 mm	0.05 in	Mating Target	0.05 in	1.27 mm	38	2	Gold	Brass Alloy	Surface Mount	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 16.96
		10	$ 14.70
		49	$ 13.73
		98	$ 12.12
		294	$ 11.31
		539	$ 11.07

Description

General part information

857-10 Series

16 Position Spring Mating Target Connector Surface Mount

Documents

Technical documentation and resources

No documents available
