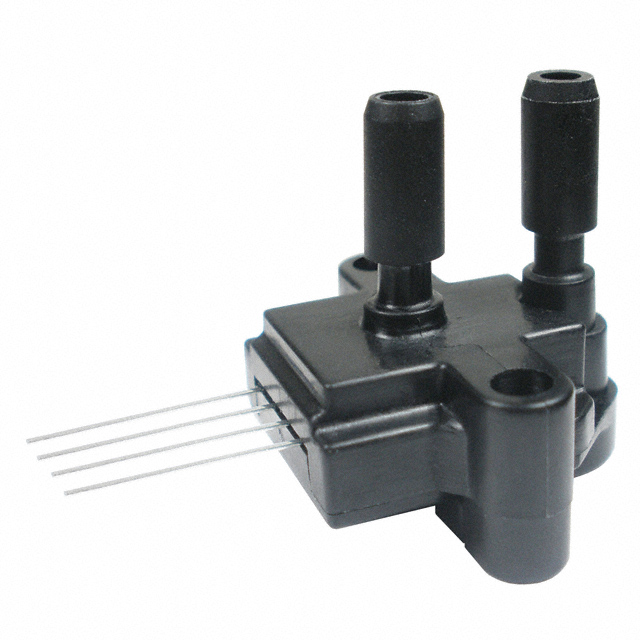

SSCSNBD005PDAA5

Obsolete

Honeywell Sensing and Productivity Solutions

SENSOR 5PSID 0.19" 4.5V 4SIP

Search across all available documentation for this part.

Obsolete

Honeywell Sensing and Productivity Solutions

SENSOR 5PSID 0.19" 4.5V 4SIP

Technical Specifications

Parameters and characteristics for this part

Specification	SSCSNBD005PDAA5

Accuracy	0.25 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure	±30PSI
Maximum Pressure	±206.84kPa
Mounting Type	Through Hole
Operating Pressure	5 PSI
Operating Pressure	34.47 kPa
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output [Max]	4.5 V
Output [Min]	0.5 V
Output Type	Analog Voltage
Package / Case	4-SIP, Dual Ports, Same Side
Port Size	4.826 mm, 4.8 mm
Port Size	Male, Tube, Dual
Port Style	Barbless
Pressure Type	Differential
Supplier Device Package	4-SIP
Termination Style	PC Pin
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

Part	Operating Pressure	Operating Pressure	Output Type	Supplier Device Package	Output [Min]	Output [Max]	Features	Accuracy	Port Style	Termination Style	Port Size	Port Size	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Package / Case	Pressure Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Maximum Pressure	Maximum Pressure
Honeywell Sensing and Productivity Solutions SSCSNBD005PDAA5	5 PSI	34.47 kPa	Analog Voltage	4-SIP	0.5 V	4.5 V	Amplified Output Temperature Compensated	0.25 %	Barbless	PC Pin	4.8 mm 4.826 mm	Dual Male Tube	85 °C	-40 °C	Through Hole	Board Mount	4-SIP Dual Ports Same Side	Differential	4.75 V	5.25 V	±30PSI	±206.84kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor ±5PSI (±34.47kPa) Differential Male - 0.19" (4.8mm) Tube, Dual 0.5 V ~ 4.5 V 4-SIP, Dual Ports, Same Side
