PCA-6-LA-06-HL-3

Active

Adam Tech

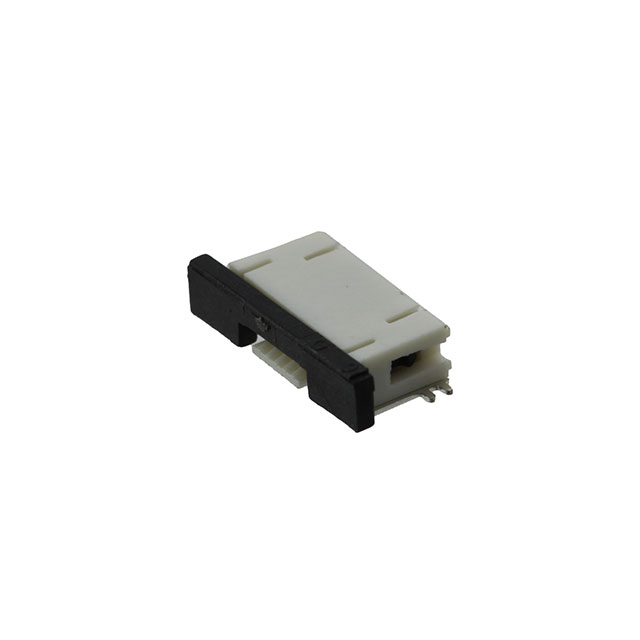

CONN FFC BOTTOM 6POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

PCA-6-LA-06-HL-3

Active

Adam Tech

CONN FFC BOTTOM 6POS 0.5MM R/A

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PCA-6-LA-06-HL-3

Actuator Color	Black
Actuator Material	Thermoplastic
Cable End Type	Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	0.091 in
Height Above Board [z]	2.3 mm
Housing Color	Natural
Housing Material	Thermoplastic
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder

PCA-6-LA Series

Part	Termination	Actuator Color	Connector/Contact Type	Current Rating (Amps)	Locking Feature	FFC, FCB Thickness	Contact Material	Flat Flex Type	Features	Mounting Type	Number of Positions	Cable End Type	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Material Flammability Rating	Height Above Board [z]	Height Above Board [z]	Contact Finish	Housing Material	Actuator Material
Adam Tech PCA-6-LA-19-HU-3	Solder	Black	Contacts Top	0.5 A	Slide Lock	0.3 mm	Phosphor Bronze	FFC FPC	Solder Retention Zero Insertion Force (ZIF)	Surface Mount Right Angle	19	Straight	0.5 mm	0.02 in	-25 °C	85 °C	Natural	UL94 V-0	0.091 in	2.3 mm	Tin	Thermoplastic	Thermoplastic
Adam Tech PCA-6-LA-04-HU-3-T/R	Solder	Black	Contacts Top	0.5 A	Slide Lock	0.3 mm	Phosphor Bronze	FFC FPC	Solder Retention Zero Insertion Force (ZIF)	Surface Mount Right Angle	4	Straight	0.5 mm	0.02 in	-25 °C	85 °C	Natural	UL94 V-0	0.091 in	2.3 mm	Tin	Thermoplastic	Thermoplastic
Adam Tech PCA-6-LA-04-HL-3	Solder	Black	Contacts Bottom	0.5 A	Slide Lock	0.3 mm	Phosphor Bronze	FFC FPC	Solder Retention Zero Insertion Force (ZIF)	Surface Mount Right Angle	4	Straight	0.5 mm	0.02 in	-25 °C	85 °C	Natural	UL94 V-0	0.091 in	2.3 mm	Tin	Thermoplastic	Thermoplastic
Adam Tech PCA-6-LA-04-HL-3-T/R	Solder	Black	Contacts Bottom	0.5 A	Slide Lock	0.3 mm	Phosphor Bronze	FFC FPC	Solder Retention Zero Insertion Force (ZIF)	Surface Mount Right Angle	4	Straight	0.5 mm	0.02 in	-25 °C	85 °C	Natural	UL94 V-0	0.091 in	2.3 mm	Tin	Thermoplastic	Thermoplastic
Adam Tech PCA-6-LA-19-HL-3	Solder	Black	Contacts Bottom	0.5 A	Slide Lock	0.3 mm	Phosphor Bronze	FFC FPC	Solder Retention Zero Insertion Force (ZIF)	Surface Mount Right Angle	19	Straight	0.5 mm	0.02 in	-25 °C	85 °C	Natural	UL94 V-0	0.091 in	2.3 mm	Tin	Thermoplastic	Thermoplastic
Adam Tech PCA-6-LA-06-HL-3	Solder	Black	Contacts Bottom	0.5 A	Slide Lock	0.3 mm	Phosphor Bronze	FFC FPC	Solder Retention Zero Insertion Force (ZIF)	Surface Mount Right Angle	6	Straight	0.5 mm	0.02 in	-25 °C	85 °C	Natural	UL94 V-0	0.091 in	2.3 mm	Tin	Thermoplastic	Thermoplastic
Adam Tech PCA-6-LA-19-HL-3-T/R	Solder	Black	Contacts Bottom	0.5 A	Slide Lock	0.3 mm	Phosphor Bronze	FFC FPC	Solder Retention Zero Insertion Force (ZIF)	Surface Mount Right Angle	19	Straight	0.5 mm	0.02 in	-25 °C	85 °C	Natural	UL94 V-0	0.091 in	2.3 mm	Tin	Thermoplastic	Thermoplastic
Adam Tech PCA-6-LA-10-HU-3-T/R	Solder	Black	Contacts Top	0.5 A	Slide Lock	0.3 mm	Phosphor Bronze	FFC FPC	Solder Retention Zero Insertion Force (ZIF)	Surface Mount Right Angle	10	Straight	0.5 mm	0.02 in	-25 °C	85 °C	Natural	UL94 V-0	0.091 in	2.3 mm	Tin	Thermoplastic	Thermoplastic
Adam Tech PCA-6-LA-24-HU-3	Solder	Black	Contacts Top	0.5 A	Slide Lock	0.3 mm	Phosphor Bronze	FFC FPC	Solder Retention Zero Insertion Force (ZIF)	Surface Mount Right Angle	24	Straight	0.5 mm	0.02 in	-25 °C	85 °C	Natural	UL94 V-0	0.091 in	2.3 mm	Tin	Thermoplastic	Thermoplastic
Adam Tech PCA-6-LA-19-HU-3-T/R	Solder	Black	Contacts Top	0.5 A	Slide Lock	0.3 mm	Phosphor Bronze	FFC FPC	Solder Retention Zero Insertion Force (ZIF)	Surface Mount Right Angle	19	Straight	0.5 mm	0.02 in	-25 °C	85 °C	Natural	UL94 V-0	0.091 in	2.3 mm	Tin	Thermoplastic	Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.59
		10	$ 0.50
		25	$ 0.47
		64	$ 0.44
		128	$ 0.42
		256	$ 0.40
		512	$ 0.38

Description

General part information

PCA-6-LA Series

6 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
