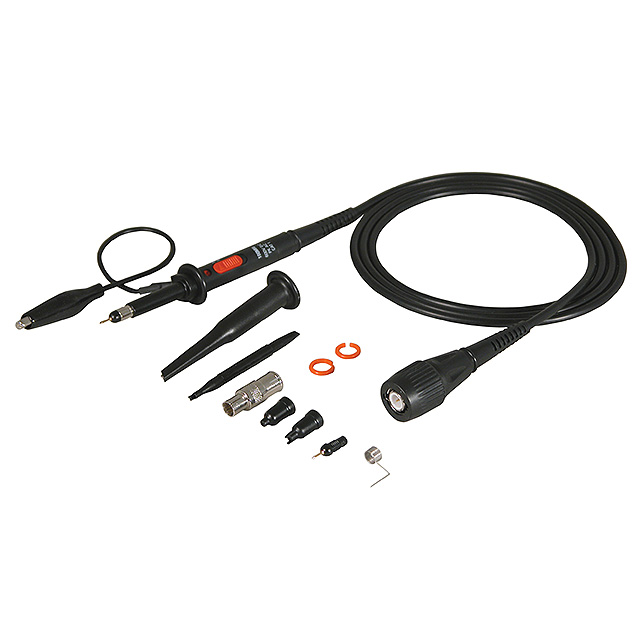

CT2704SA

Active

Cal Test Electronics

OSCOPE PRB X1/X10 100MHZ 1M/10M

Search across all available documentation for this part.

Active

Cal Test Electronics

OSCOPE PRB X1/X10 100MHZ 1M/10M

Technical Specifications

Parameters and characteristics for this part

Specification	CT2704SA

Attenuation Value [custom]	1:1, 10:1
Bandwidth	100 MHz
Cable Length	47.244 in
Cable Length	1.2 m
Capacitance - Input	45 pF, 16 pF
Color	Black
Includes	Sprung Hook, BNC Adapter, Insulating Tip, Ground Lead, Rings, Trimmer Tool
Resistance - Input	10 M, 1 M
Type	Passive
Voltage - Max	300 V

Part	Type	Resistance - Input	Bandwidth	Voltage - Max	Includes	Color	Capacitance - Input	Attenuation Value [custom]	Cable Length	Cable Length
Cal Test Electronics CT2704SA	Passive	1 M 10 M	100 MHz	300 V	BNC Adapter Ground Lead Insulating Tip Rings Sprung Hook Trimmer Tool	Black	16 pF 45 pF	1:1 10:1	47.244 in	1.2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.00

General part information

1:1, 10:1 Passive 100MHz 47.244" (1200.00mm) Black Oscilloscope Probe Test Lead 1M, 10M Input Resistance CAT II 300V
