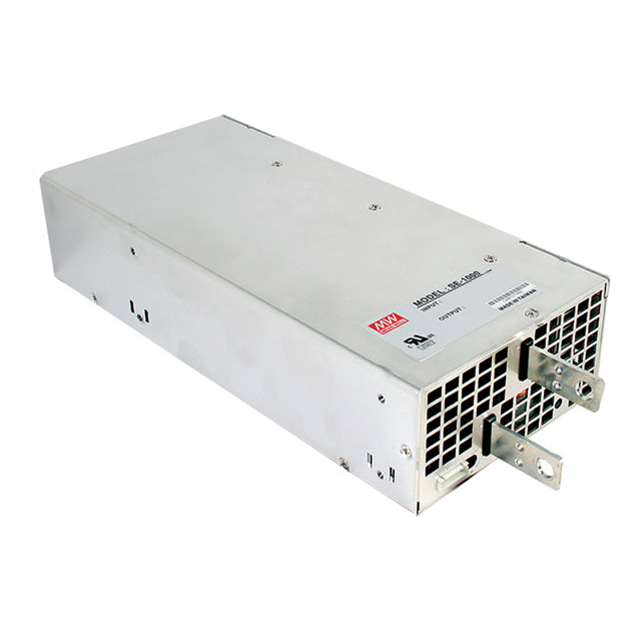

SE-1000-9

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 9V 900W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 9V 900W

Technical Specifications

Parameters and characteristics for this part

Specification	SE-1000-9

Applications	ITE (Commercial)
Current - Output 1	100 A
Efficiency	84 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	900 W
Type	Enclosed
Voltage - Input [Max]	132 VAC, 370 VDC, 264 VAC
Voltage - Input [Min]	254 VDC, 180 VAC, 90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	9 V

Part	Voltage - Isolation	Applications	Efficiency	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Current - Output 1	Features	Mounting Type	Type	Voltage - Output 1	Voltage - Input [Max]	Voltage - Input [Min]
MEAN WELL USA Inc. SE-1000-12	3000 V	ITE (Commercial)	85 %	1	60 °C	-20 °C	1 kW	83.3 A	Adjustable Output Remote On/Off Remote Sense	Chassis Mount	Enclosed	12 V	132 VAC 264 VAC 370 VDC	90 VAC 180 VAC 254 VDC
MEAN WELL USA Inc. SE-1000-9	3000 V	ITE (Commercial)	84 %	1	60 °C	-20 °C	900 W	100 A	Adjustable Output Remote On/Off Remote Sense	Chassis Mount	Enclosed	9 V	132 VAC 264 VAC 370 VDC	90 VAC 180 VAC 254 VDC
MEAN WELL USA Inc. SE-1000-48	3000 V	ITE (Commercial)	89 %	1	60 °C	-20 °C	998 W	20.8 A	Adjustable Output Remote On/Off Remote Sense	Chassis Mount	Enclosed	48 V	132 VAC 264 VAC 370 VDC	90 VAC 180 VAC 254 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 9V 90 ~ 132 VAC, 180 ~ 264 VAC, 254 ~ 370 VDC Input
