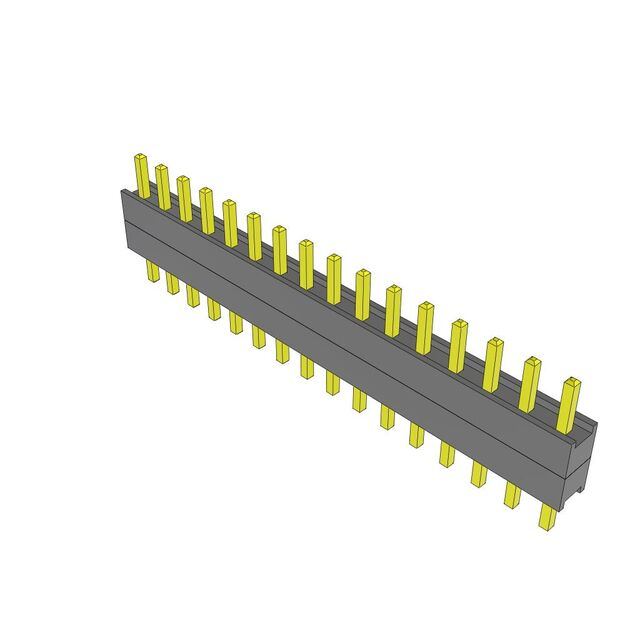

ZW-16-16-T-S-200-125
ActiveSamtec Inc.
CONN BRD STACK .100" 16POS
Deep-Dive with AI
Search across all available documentation for this part.
ZW-16-16-T-S-200-125
ActiveSamtec Inc.
CONN BRD STACK .100" 16POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZW-16-16-T-S-200-125 |
|---|---|
| Color | Black |
| Contact Finish - Post (Mating) | Tin |
| Length - Overall Pin [x] | 11.303 mm |
| Length - Overall Pin [x] | 0.445 in |
| Length - Post (Mating) [x] | 3.048 mm |
| Length - Post (Mating) [x] | 0.12 in |
| Length - Tail [custom] | 3.18 mm |
| Length - Tail [custom] | 0.125 in |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Rows | 1 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.63 | |
Description
General part information
ZW-16-16 Series
16 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole
