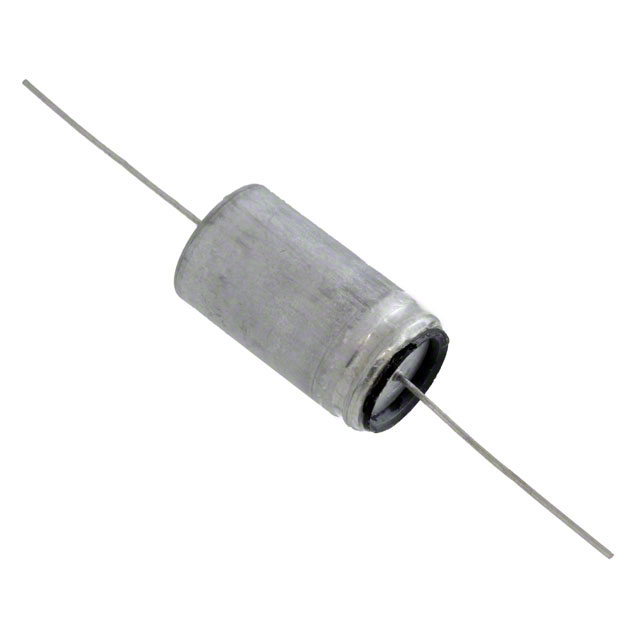

PEG130KJ4300QL1

Obsolete

KEMET

CAP ALUM 3000UF 40V AXIAL TH

Search across all available documentation for this part.

Obsolete

KEMET

CAP ALUM 3000UF 40V AXIAL TH

Technical Specifications

Parameters and characteristics for this part

Specification	PEG130KJ4300QL1

Applications	General Purpose
Capacitance	3000 µF
ESR (Equivalent Series Resistance)	42 mOhm
Lifetime @ Temp.	37000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Can, Axial
Polarization	Polar
Ripple Current @ Low Frequency	1.85 A
Size / Dimension [diameter]	20 mm
Size / Dimension [diameter]	0.787 in
Size / Dimension [x]	1.457 in
Size / Dimension [x]	37 mm
Tolerance [Max]	30 %
Tolerance [Min]	-10 %
Voltage - Rated	40 V

Part	Polarization	Applications	Tolerance [Min]	Tolerance [Max]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Lifetime @ Temp.	Mounting Type	Voltage - Rated	Ripple Current @ Low Frequency	ESR (Equivalent Series Resistance)
KEMET PEG130KJ4300QL1	Polar	General Purpose	-10 %	30 %	20 mm	1.457 in	0.787 in	37 mm	Axial Can	-40 °C	105 ░C	3000 µF	37000 Hrs	Through Hole	40 V	1.85 A	42 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3000 µF 40 V Aluminum Electrolytic Capacitors Axial, Can 42mOhm @ 100Hz 37000 Hrs @ 105°C
