Technical Specifications
Parameters and characteristics for this part
| Specification | R12P06S |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 167 mA |
| Efficiency | 81 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-SIP Module, 4 Leads |
| Size / Dimension [x] | 19.6 mm |
| Size / Dimension [x] | 0.77 in |
| Size / Dimension [y] | 0.39 " |
| Size / Dimension [y] | 9.8 mm |
| Size / Dimension [z] | 0.49 in |
| Size / Dimension [z] | 12.5 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V |
| Voltage - Isolation | 6.4 kV |
| Voltage - Output 1 | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

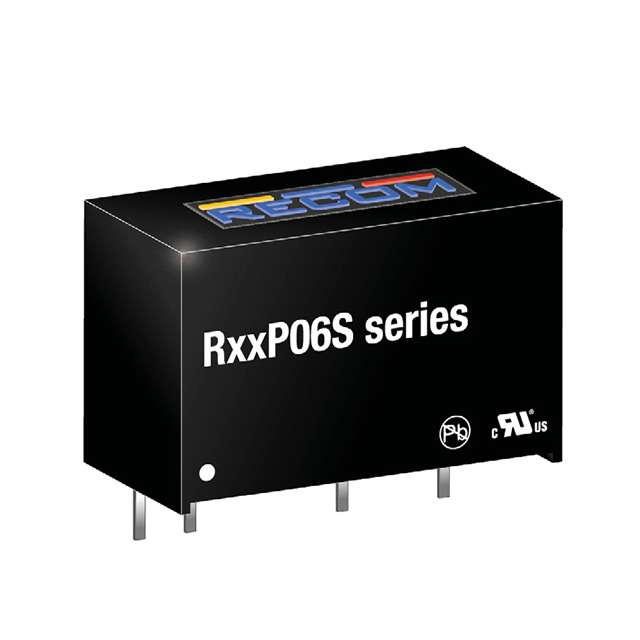

RxxP06 Series
Isolated DC/DC Converters - Through Hole 1W 24Vin 6Vout 167mA SIP7
